API Pressure Seal Bonnet Gate Valve Flexible Wedge Solid Wedge Full Port Design,1500LB

Detailed Product Description Size: NPS 2"~36" Pressure Rating: Class 600~2500 Material: WC6, WC9, C12,CF8, CF8M, CF3,CF3M,etc Temperature: -196°~593° Standard: API 600, BS 1414, AS
Model Number:
CX-PSB-GTV-01
Minimum Order Quantity:
1PC
Prices:
Negotiable
Packaging Details:
Plywood packing
Delivery Time:
30-60days
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
1000PCS per month
Place of Origin:
WENZHOU,CHINA
Certification:
API, ISO, CE, GOST, TS, BS1873, BS5351, API 6D,600,602,609, ASME B16.34, API 6FA, API607 etc

Detailed Product Description

Size: NPS 2"~36" Pressure Rating: Class 600~2500
Material: WC6, WC9, C12,CF8, CF8M, CF3,CF3M,etc Temperature: -196°~593°
Standard: API 600, BS 1414, ASME B16.34 Face To Face: ASME B16.10, API 6D, BSEN 558
End Connection: ASME B16.5, ASNE B16.47, BSEN 1092 Operation Method: Manual ,Worm Gear, Electric Actuator, Pneumatic Actuator
High Light: butt weld gate valve ,  handwheel gate valve

Pressure Seal Gate Valve Flexible Wedge Solid Wedge Full Port Design

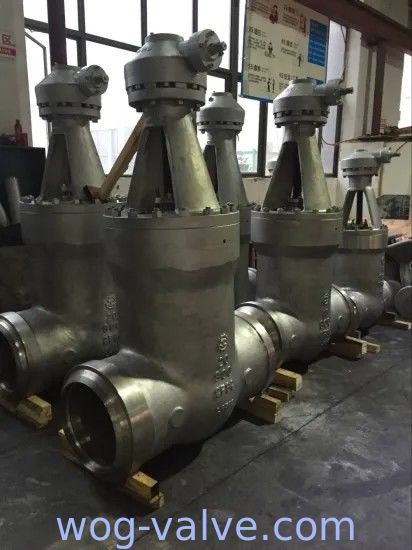

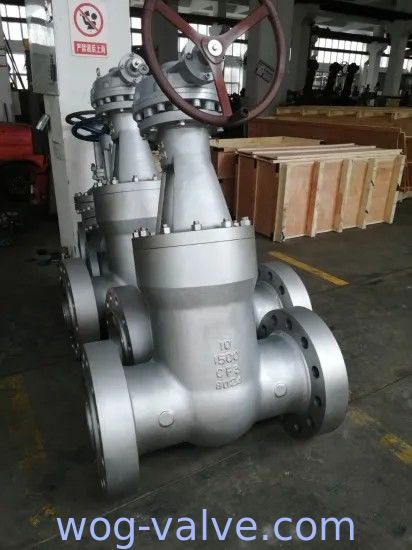

(PSB) Pressure seal gate valve high pressure class 1500 with Chrome-molybdenum steel WC9. Pressure seal bonnet, fully guided, choice of solid or flexible wedge,renewable seat rings, blow-out stem design, rising or non-rising handwheel, flanged or BW.

Presure seal Gate Valve

Type: Z40Y

Size:3"

Pressure: Class 1500

Working Temp.:≤593℃

Material:Carbon steel,Stainless steel,Alloy steel,special material,chromium molybdenum steel,etc.

Medium:Water, Steam, Oil,high pressure & high temparature

Operation: Manual, Handwheel,Pneumatic, Electric actuator

Design standards

Steel gate valves, API 600/API 6D

Steel gate valves, ISO 10434/ISO 14313

Steel valves, ASME B16.34

Face to face, ASME B16.10

End flanges, ASME B16.5

Butt welding ends, ASME B16.25

Inspection and test, API 598

Design Features

Full port design

OS&Y, Outside screw and yoke

BB, Bolted bonnet

Flexible wedge/solid wedge

Renewable seat

Forged T-Head stem

Handwheel, & Gear box operator

API Pressure Seal Bonnet Gate Valve Flexible Wedge Solid Wedge Full Port Design,1500LB 0

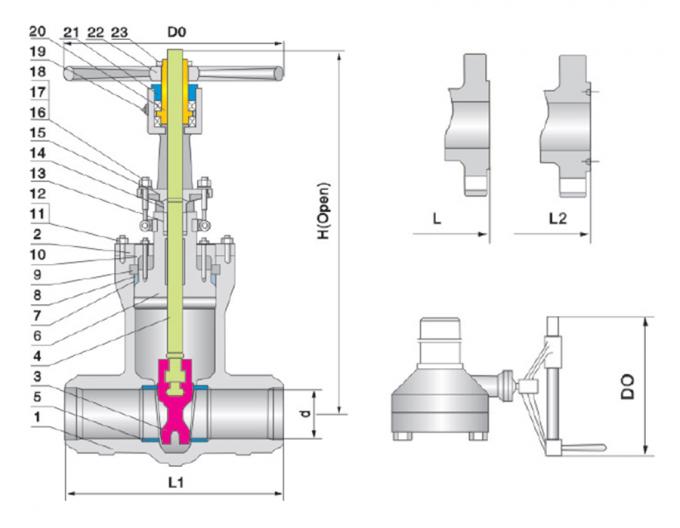

Sample Material of parts:

No. ASTM Material
Part Name Carbon steel 11/4 Cr-11/2 Mo Low-term. Steel Stainless steel
1 Body A216-WCB A217-WC6 A352-LCB ASTM A351 CF8M
3 Wedge A216-WCB+13Cr A217-WC6+HF A352-LCB+13Cr A351-CF8M+STL
4 Stem A182-F6a CR-MO-V A182-F6a A182-F316
5 Seat Ring A105+13Cr A182 F11+HF A350 LF2+13Cr A182-F316+STL
6 Stem Back Seat A276-410 A276-410 A276-410 A182-F316
7 Bonnet Gasket Spiral Wound(Graphite+304/316)
8 Bonnet Stud A193-B7 A193-B16 A320-L7 A193-B8M
9 Bonnet Stud Nut A194-2H A194-7 A194-4 A194-8M
10 Packing Graphite
11 Gland A276-420 A276 420 A276-420 Stainless steel
12 Gland Flange A216 WCB A217-WC6 A352-LCB ASTM A351 CF8M
13 Eyebolt Pin Carbon steel A276 420 Carbon steel Stainless steel
14 Bolt Carbon steel A193-B7 Carbon steel A193-B8M
15 Nut Carbon steel A194-2H Carbon steel A194-8M
16 Grease Fitting Brass + steel
17 Yoke sleeve Copper Alloy
18 Yoke sleeve nut Carbon steel
19 Handwheel Malleable iron
20 Handwheel nut Carbon steel
