Flanged JIS10K Rising Cast Steel Gate Valve API603 ASME B16.34 1/2~36"

Detailed Product Description Size: 1/2~36" Pressure: CL150~1500,JIS10K,JIS20K Material: Stainless Steel Operation: Handwheel,Worm Gear High Light: bolted bonnet gate valve , handw
Model Number:
CX-GTV-15
Minimum Order Quantity:
1PC
Prices:
Negotiable
Packaging Details:
Plywood packing
Delivery Time:
10-40days
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
1000PCS per month
Place of Origin:
WENZHOU,CHINA
Certification:
API,ISO,CE

Detailed Product Description

Size: 1/2~36" Pressure: CL150~1500,JIS10K,JIS20K
Material: Stainless Steel Operation: Handwheel,Worm Gear
High Light: bolted bonnet gate valve ,  handwheel gate valve

API603,ASME B16.34,bb,os&y,rising stem stainless steel SCS13,SCS14,gate valve,flanged,JIS10K


Specifications:

  1. 1/2"~36" (DN15~DN900)
  2. W. P.: PN10/16/25/40
    CLASS 150/300/600/900/1500
    JIS 10K,20K
  3. W. T.:-20℃ ~200℃ (-4℉~392℉)
  4. Investment casting
  5. Rising stem
  6. API 6D / API 600 / API 603 (option),JIS2220

*5" UP GASKET:304+GRAPHITE

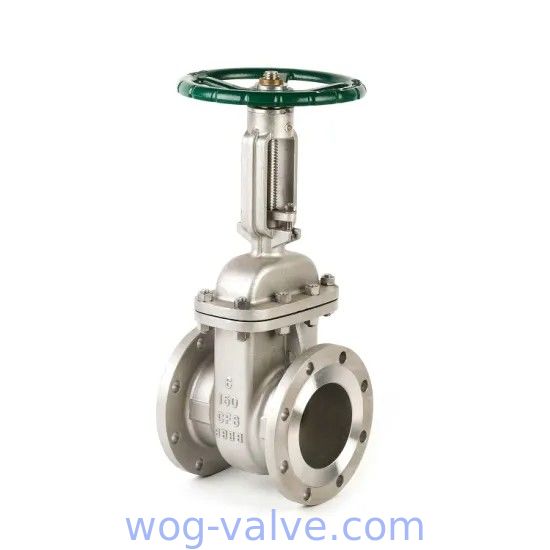

Flanged JIS10K Rising Cast Steel Gate Valve API603 ASME B16.34 1/2~36" 0

ITEM PARTS MATERIAL
1 BODY ASTM A351-CF8M 1.4408 ASTM A351-CF8 1.4308
2 DISC
3 BONNET BOLT AISI 304
4 BONNET NUT
5 BONNET ASTM A351-CF8M 1.4408 ASTM A351-CF8 1.4308
6 HINGE PIN AISI 304
7 EYE BOLT
8 GLAND ASTM A351-CF8
1.4308
9 NUT AISI 304
10 HAND WHEEL FCD
11 NUT BRONZE
12 STEM AISI 316 AISI 304
13 NAME PLATE AISI 304
14 SPRING BRONZE
15 YOKE SLEEVE
16 SPRING WASHER AISI 304
17 GLAND PACKING PTFE
18 PACKING
19 SEAL PTFE/304+GRAPHITE

We also spercial produce of Flange Ball Valve, Gate Valve, Globe Valve, Check Valve, Butterfly Valve & Y Strainer.Any inquiry for these valves,pls let us know freely by sales@cncxvalve.com

We will give you best price immediately,and meanwhile,we will supply better service with your other suppliers.Why not have a try.

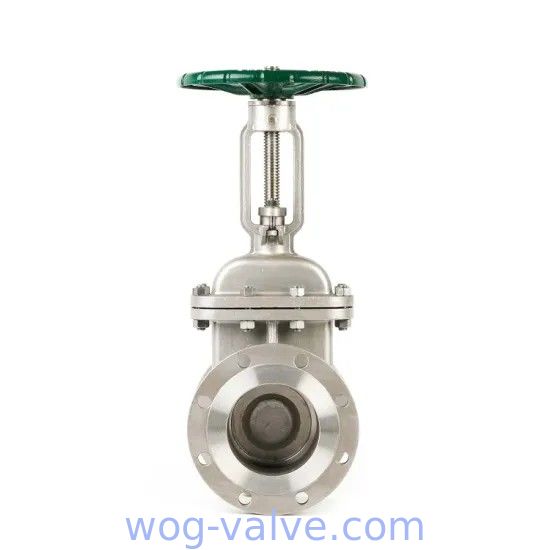

Flanged JIS10K Rising Cast Steel Gate Valve API603 ASME B16.34 1/2~36" 1
