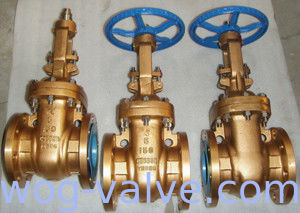

Flexible Wedge Cast Steel Gate Valve 4 Inch FF Rising Stem Gate Valve ASME B16.34

Detailed Product Description Type: Gate Valve Body Material: ASTM B148 UNS C95800 Trim Material: Aluminum Bronze Pressure: CLASS 150 Size: 4 Inch (DN100) Port: Ningbo, China
Model Number:
CX-NABGTV-1
Minimum Order Quantity:
1PC
Prices:
Negotiable
Packaging Details:
Plywood packing
Delivery Time:
30-60days
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
3000-5000PCS per month
Place of Origin:
WENZHOU,CHINA
Certification:
API,ISO,CE

Detailed Product Description

Type: Gate Valve Body Material: ASTM B148 UNS C95800
Trim Material: Aluminum Bronze Pressure: CLASS 150
Size: 4 Inch (DN100) Port: Ningbo, China
High Light: bolted bonnet gate valve ,  handwheel gate valve

ASME B16.34,Flexible Wedge Gate Valve class 150, B148 UNS C95800, FF,4inch,rising stem

B148 C95800 / C95500/C83600/C84400 Aluminum Bronze Threaded Gate Valve

Gate Valve
Standard: API, ANSI, ISO, BS, DIN, NF, JIS. ECT
Connect Way: Flanges, Thread, Socket welding, BW
Pressure rating: PN 1.0~25Mpa; Class150~600
Size: DN6~500mm, NPS1/4"~20"
Temp. -198c~+450c


Material:
Tianium: TA1, TA2, TA10, TC4, GR2, GR3, GR5
Nickel Alloy: N6, N201, N200, CZ-100
Hastelloy Alloy: Hastello B(N-12MV, N-7M), Hastello C(CW-12MW)
Hastelloy C276(CW-6MC), Hastelloy C4, Hastelloy G30
Monel Alloy: M-30C, M35-1, Monel 400, Monel 600, Monel K500
Inconel: Inconel 600, Inconel 800, Inconel 690
Duplex Steel: S31803(SAF2205, F51), S32750(SAF2507, F53)
Zirconium: Zirconium 702, Zirconium 705
Austenitic Stainless steel: 904L, 254SMO. 654SMO
Other: NS143/Alloy20, C4

B148 C95800 / C95500/C83600/C84400 Aluminum Bronze Threaded Gate Valve application scope, application fields include:


* Petroleum, petrochemical equipment, such as reactors in petrochemical equipment.
* Sulfuric acid storage and transportation equipment, such as heat exchangers.
* Power plant flue gas desulfurization equipment, the main use of parts: absorption tower tower, flue, stall door, internal parts, spray systems.
* Scrubbers and fans in organic acid processing systems.
* Seawater treatment plants, seawater heat exchangers, paper industry equipment, sulphuric acid, nitric acid equipment, acid production, pharmaceutical industry and other chemical equipment, pressure vessels, food equipment.
* Pharmaceutical factory: centrifuges, reactors, etc.
* Plant foods: soy cans, cooking wine, salt cans, equipment and dressings.
* 904L, a strong corrosive medium for dilute sulfuric acid, is a matched steel grade.

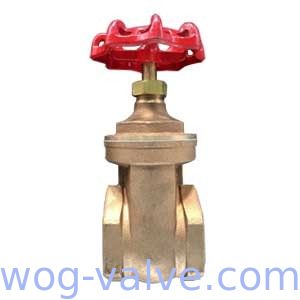

B148 C95800 / C95500/C83600/C84400 Aluminum Bronze Threaded Gate Valve
Standards compliance
Design and Manufacture: ANSI B16.34, API 600, API 6D, API 603, BS1414
Face to face (end to end): ANSI B16.10, API 6D
Flanged connection: 2"~24" to ANSI B16.5, 22", 26"~36" to MSS-SP-44 to API605 on Request
Test and inspection: API 598, API 6D
Butt welded end: ANSI B16.5

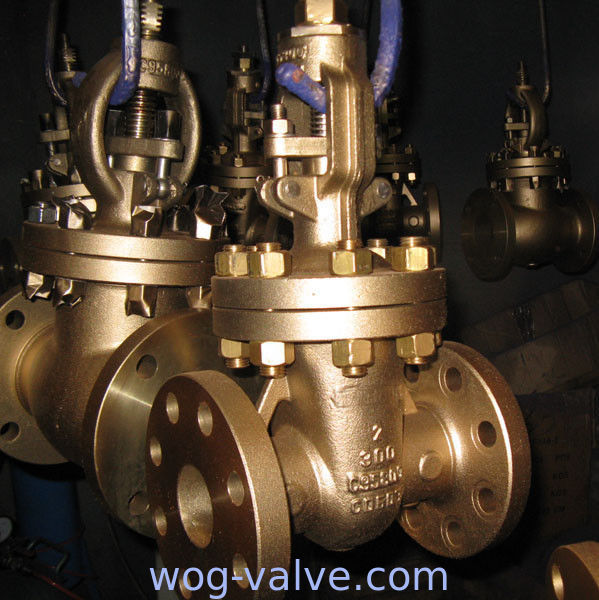

B148 C95800 / C95500/C83600/C84400 Bronze Material Flanged Gate Valve


A. Anti-friction ball thrust bearing: Reduces friction between mating parts to ensure smooth operation
B. Grub screw: Secures yoke nut in the bonnet
C. Grease nipple: Supplies lubricant to the mating parts

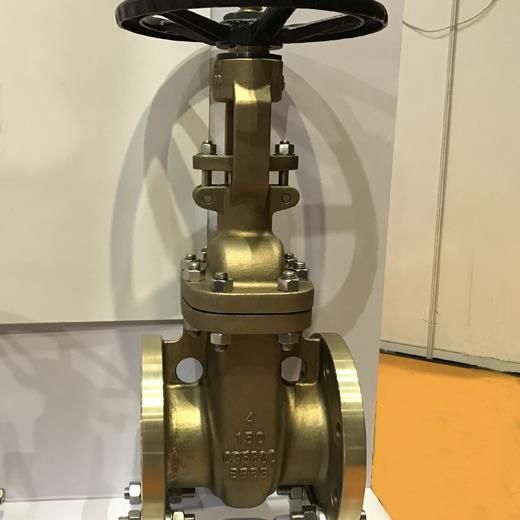

CX VALVE Aluminum Bronze Gate Valve: Flexible Wedge Gate Valves, Aluminum Bronze ASTM B148 UNS C95800, Integral Type, BB, OS&Y, Flange FF, 150LB, 4 Inch.

We also spercial produce of Flange Ball Valve, Gate Valve, Globe Valve, Check Valve, Butterfly Valve & Y Strainer.Any inquiry for these valves,pls let us know freely by sales@cncxvalve.com

We will give you best price immediately,and meanwhile,we will supply better service with your other suppliers.Why not have a try.
