Industrial Flanged Cast Steel Gate Valve Hand Wheel PN16 DIN 3202 F4

Detailed Product Description Size: DN50~DN1200 Pressure Rating: PN10~PN160 Material: WCB, LCB, WC6, WC9, C12,CF8, CF8M, CF3,CF3M,etc Temperature: -196°~593° Standard: DIN, BS 1414,
Model Number:
CX-DIN-GTV-12
Minimum Order Quantity:
1PC
Prices:
Negotiable
Packaging Details:
Plywood packing
Delivery Time:
30-60days
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
1000PCS per month
Place of Origin:
WENZHOU,CHINA
Certification:
API, ISO, CE, GOST, BS1873, BS5351, API 6D,600,602,609, ASME B16.34, API 6FA, API607 etc

Detailed Product Description

Size: DN50~DN1200 Pressure Rating: PN10~PN160
Material: WCB, LCB, WC6, WC9, C12,CF8, CF8M, CF3,CF3M,etc Temperature: -196°~593°
Standard: DIN, BS 1414, ASME B16.34 Face To Face: ASME B16.10, API 6D, BSEN 558,DIN
End Connection: ASME B16.5, ASNE B16.47, BSEN 1092 Operation Method: Manual ,Worm Gear, Electric Actuator, Pneumatic Actuator
High Light: bolted bonnet gate valve ,  handwheel gate valve

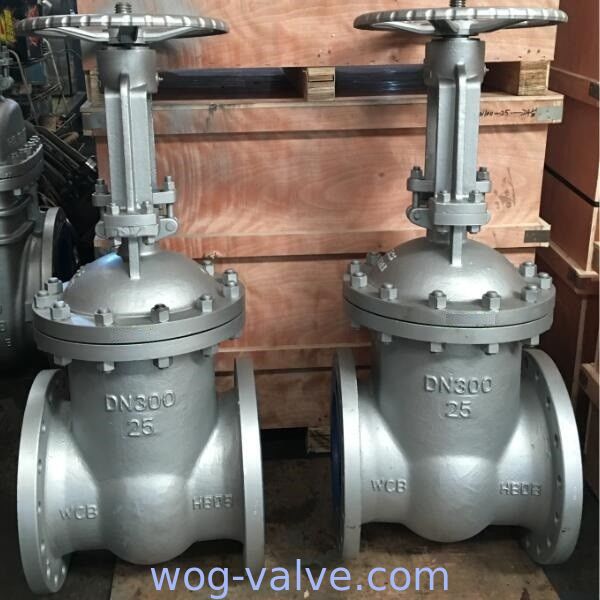

DIN 3202 F4 Rising Stem,,OS&Y, Cast Steel Flanged Gate Valve,PN16,Handwheel Operated

CX Valve is specialized in manufacturing DIN Cast Steel Gate Valve with following good characteristics: good sealing performance, reliable safety guarantee, Long working life. completitive cost and 24 hours after sale services and etc.

Features

Size:DN50~DN1200
Class:PN10~PN160
Body Material:Cast Carbon Steel,Cast Alloy Steel,Cast Stainless Steel,Duplex Steel,etc.
OS&Y,Rising Stem
Bolted bonnet
Flexible Wedge
By Pass (On Request)
Extended Bonnet for Cryogenic Service(On Request)

Specification

Design: DIN3352,EN1984
Face to Face: DIN3202,EN558,EN12982
End Flange: DIN2532,DIN2546,DIN2547,DIN2548
BW Ends: EN12627
Test: EN12266-1

Gate Valve mainly has Thread 200WOG Gate Valve, API600 Flanged ends Gate Valve, DIN F4/F7 Stainless Steel Flanged ends Gate Valve, Carbon Steel Bellow Seal Gate Valve, Forged Steel A105 Gate Valve, 800LB Thread ends Gate Valve, F11/F22/F51 1500LB Flanged ends Gate Valve, Butt Welded Gate Valve, Pressure Sealed Socket Welded Gate Valve, Flanged ends 2500LB High Pressure Gate Valve, 150LB~900LB WCB Flanged Gate Valve, Rising Stem Gate Valve, Non-Rising Stem Gate Valve, Gear Operated Gate Valve, Gate Valve with Pneumatic/Electric Actuator.

Specifications:

Product Name Cast Steel DIN Standard Flanged ends Gate Valve
1. Material SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M), WCB, WCC, LCB,LCC,WC6,WC9, C5,C12, etc
2. Size DN50~DN1200
3. Thread standard ISO9001 & CE
4. Port Full Port
5. Working Pressure PN10~PN100
6. Face to face dimension DIN3202 F4/F5/F7/F15 standard
7. Connection Ends RF, RTJ, FF, Butt Welded.
8. Type Rising Stem & Non-Rising Stem
9. Working Temp. -29~425ºC, or according to customer requirements for different industry.
10. Suitable Medium Water, Natural Gas, Oil and some corrosive liquid
11. Operated Handwheel, Gear Operated.
12. Inspection & Testing According to EN12266
Shipment
Delivery Time 15~20 Days
Package Standard Exporting Plywood Case
Shipping Port Ningbo/Shanghai, China
Shipping Terms Exw, FOB, CFR, CIF, etc.
Payment Terms T/T, Western Union, PayPal, etc.
  30% prepayment, 70% balance paid before shipping or against copy of BL
Country of Origin Wenzhou city, China
Production Capacity 1000   Sets/Month
MOQ 10 PCS/size


Features:

  1. Drive unit is made to user's request if not specified handwheel drive will be used.
  2. Top-mounted stem nut can prevent stem disc from falling off when valve is at open position and handwheel is taken off.
  3. Packing uses flexible graphite for dependable sealing performance.If requested by users,packing spacer ring and greasing mechanism can be available.
  4. Upper seal design to ensure dependable packing and sealing when valve is fully opened.(Replacement of packing under pressure is not recommended)
  5. Lift stem,with stem and disc connected by t-slot,and stem T head intergrally forged to ensure sufficient strength of joint.


Technical Specification:

  1. Design and Manufacture: DIN3352
  2. Inspection and Test: ISO 5208,EN12266
  3. Flanged ends dimension: EN 1092-1,DIN2544 PN25,DIN2545 PN40,DIN2546 PN64
  4. Butt-welded ends dimension: EN12627
  5. Face to face and end to end: DIN3202,EN558-1,ISO5752
  6. Pressure-temperature ratings: DIN2401

We also spercial produce of Flange Ball Valve, Gate Valve, Globe Valve, Check Valve, Butterfly Valve & Y Strainer.Any inquiry for these valves,pls let us know freely by sales@cncxvalve.com

We will give you best price immediately,and meanwhile,we will supply better service with your other suppliers.Why not have a try.
