Manual Full Port Cast Steel Gate Valve Solid Wedge Flanged To Pn10

Detailed Product Description Size: NPS 2"~24" Pressure Rating: Class 150~300 Material: WCB, LCB, WC6, WC9, C12,CF8, CF8M, CF3,CF3M,etc Temperature: -196°~593° Standard: API 600, BS
Model Number:
CX-KFGTV-4
Minimum Order Quantity:
1PC
Prices:
Negotiable
Packaging Details:
Plywood packing
Delivery Time:
30-60days
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
1000PCS per month
Place of Origin:
WENZHOU,CHINA
Certification:
API, ISO, CE, GOST, BS1873, BS5351, API 6D,600,602,609, ASME B16.34, API 6FA, API607 etc

Detailed Product Description

Size: NPS 2"~24" Pressure Rating: Class 150~300
Material: WCB, LCB, WC6, WC9, C12,CF8, CF8M, CF3,CF3M,etc Temperature: -196°~593°
Standard: API 600, BS 1414, ASME B16.34 Face To Face: ASME B16.10, API 6D, BSEN 558
End Connection: ASME B16.5, ASNE B16.47, BSEN 1092 Operation Method: Manual ,Worm Gear, Electric Actuator,Pneumatic Actuator
High Light: butt weld gate valve ,  handwheel gate valve

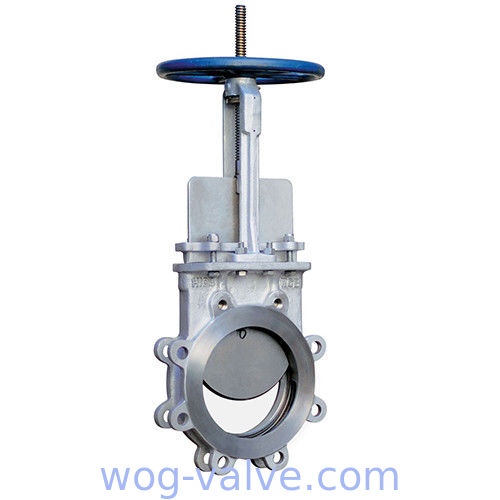

Lug type Manual stainless steel knife gate valve,solid wedge,full port,flanged to pn10,electric Operated

CX Valve is specialized in manufacturing Manual Knife Gate Valve with following good characteristics: good sealing performance, reliable safety guarantee, Long working life. completitive cost and 24 hours after sale services and etc.

Sizes Range:

DN 50~600mm NPS 2”-24”

(Large diameter on request)

Sealing Options:

NBR:90°C EPDM: 120°C

Viton: 200°C PTFE: 200°C

Metal seal :304/316+Satellite

Max Working pressure:

DN50~DN250: 10Bar NPS2~NPS10:150Psi

DN300~DN450: 7Bar NPS12~NPS18:90Psi

DN500~DN600: 4Bar NPS20~NPS24: 60Psi

Face to Face:

MSS SP-81

Flange connection:

ASME B 16.5, EN1092-1 (other connections on request)

Operation Option:

Handwheel/Bevel Gear

Pneumatic/Electric/Hydraulic

Certificates:

API, CE,ISO9001

Application:

Pulp & Paper / Water & Waster Water /Mining / Metallurgy/

Petrochemical /Printing & Dying / Pharmacy/ Beverage & Food

The Manual Knife Gate Valve is a unidirectional wafer knife edge gate valve used on industrial pipeline for on-off operation. The structure of body and seat eliminates clogging shutoff for flow with fine particles. Additionally, beveled knife edge helps the gate cut through thick media easily.

According to different working situation: non-rising stem Knife Gate Valve, wafer Knife Gate Valve, lugged Knife Gate Valve, pneumatic Knife Gate Valve, electric Knife Gate Valve, manual Knife Gate Valve are all available.

Body:

Guide claws design at the port bottom for gate fixture, instead of a groove, eliminates any potential clogging when valve shutoff.

Integral body design ensures smooth flow, easy assembly and smaller shell leakage possibility.

Gate:

Beveled knife edge provides strong cutting stress and tight sealing.

PTFE resilient point guider above the port prevents metal-metal contact between gate and body.

Gate thickness can be increased to meet higher pressure.

Seat:

Side-entry seat is replaceable, reducing the cost of maintenance.

Preloaded seat is adjustable to meet different sealing class and compensate normal seat wear.

Seat retainer covers the side of seat and prevents seat from direct flow flushing.

Other

Double thrust bearing minimize the torque required for operation.

Stem Cover is available

Grease Nipple is available

Bearing Cover is available

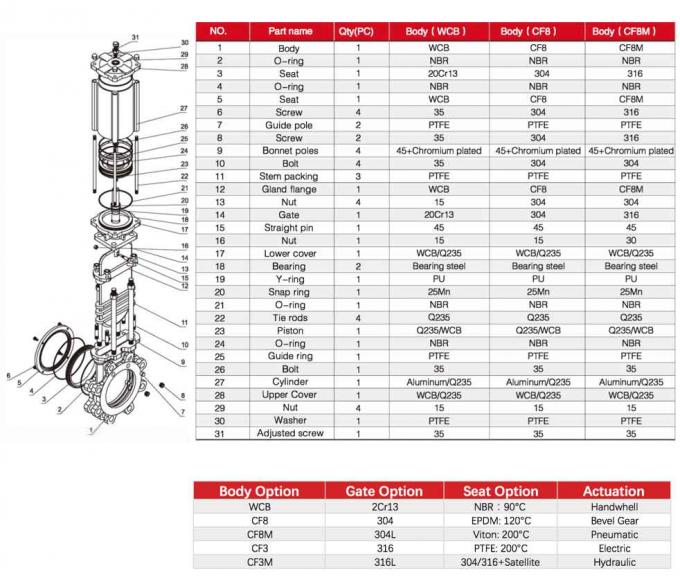

Sample BOM

Manual Full Port Cast Steel Gate Valve Solid Wedge Flanged To Pn10 0

Manual Full Port Cast Steel Gate Valve Solid Wedge Flanged To Pn10 1
