Manual Stainless Steel Cast Steel Gate Valve Flanged 2-48 Inch 150LB

Detailed Product Description Type: Carbon Steel Gate Valve Pressure: 150LB-2500LB (PN1.6-42mPa) Size: 2-48Inch (DN50-DN1200) Standard: API600,API603,ASME B16.34 Materials: Carbon,
Model Number:
CX-GTV-12
Minimum Order Quantity:
1PC
Prices:
Negotiable
Packaging Details:
Plywood packing.
Delivery Time:
30-60days
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
1000PCS per month
Place of Origin:
WENZHOU,CHINA
Certification:
API,ISO,CE

Detailed Product Description

Type: Carbon Steel Gate Valve Pressure: 150LB-2500LB (PN1.6-42mPa)
Size: 2-48Inch (DN50-DN1200) Standard: API600,API603,ASME B16.34
Materials: Carbon, Alloy And Stainless Steel Grades: WCB, LCB, WC1, WC6, WC9
High Light: bolted bonnet gate valve ,  butt weld gate valve

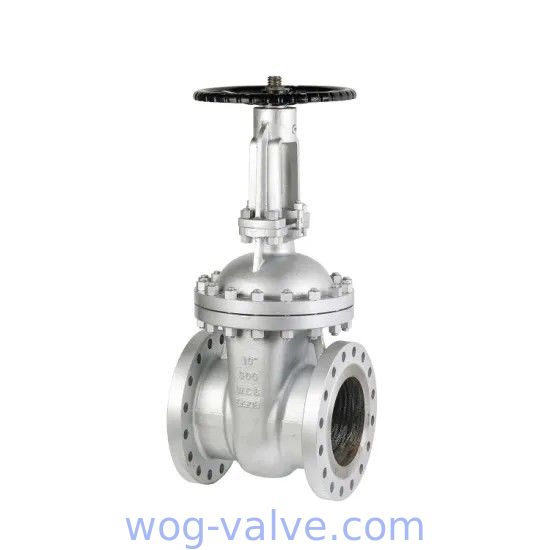

API 600 Cast Steel flexible wedge gate valve,A216WCB,BB,OS&Y, Flanged,full port,class 150

1.General Design Features

  • Valve Range: Size 2-48Inch (DN50-DN1200), Rating Class 150-1500Lb (PN16-PN250)
  • Valve Applications: Oil Industry, Chemical, Power Station, Refinery, Pharmaceutical Plants, Fertilizers, Steel Plant, Paper Industires,etc...
  • Design Standard: API600, ASME B16.34, BS1414, DIN3352,etc..
  • Face-to-Face Standard: ASME B16.10, etc...
  • Connection Standard: Flange per ASME B16.5/ASME B16.47(NPS≥26”), BW per ASME B16.25 Other
  • Testing Standard: API 598, etc...
  • Type of Bore: Full Bore, etc...
  • Valve Material: Cast Steel
  • Valve Operation: Handwheel, Gear Worm, Electric, Pneumatic, etc..
  • Connection Type: FF, RF, RTJ, BW
  • Gate Type: Flexible Wedge, Parallel Disc Wedge, etc..
  • Stem Type: Rising Stem
  • Seat Type: Welded Seat, Threaded Seat, Integral Seat, etc..
  • Body-Bonnet Connection Type: Bolted Bonnet, Extended Bonnet, etc..
  • Other Features:Hard Facing,Bypass Arrangement,Drain and Vent Connection,Bellow Sealed,Live
  • Loading Stem Packing,With Lantern Ring,Water Seal,Locking Device,Extended Stem,etc..



2.Main Material Applied for Wedge Gate Valve

MAIN MATERIAL LIST
Body/Bonnet: A216-WCB/WCC,A352-LCB/LCC,A217-WC6/WC9/C5/C12,A351-CF8/CF8M/CF3/CF3M/CF8C/CN7M,A890 4A/5A/6A,Other
Wedge A216-WCB/WCC,A352-LCB/LCC,A217-WC6/WC9/C5/C12,A351-CF8/CF8M/CF3/CF3M/CF8C/CN7M,A890 4A/5A/6A,A217-CA15,Other
Stem F6a,SS304,SS304L,SS316,SS316L,SS321,ALLOY-20,SS17-4PH,F51,F53,F55,Other
Seat Ring A105,LF2,F11,F22,F5,F9,F6a,SS304,SS304L,SS316,SS316L,SS321,ALLOY-20,F51,F53,F55,Other
Seal Surface 13CR/13CR,13CR/STL,STL/STL,SS304/SS304,SS316/SS316,SS316/STL,ALLOY-20/ALLOY-20,F51/F51,Other
Gasket SS304+Graphite, SS316+Graphite,SS316L+Graphite,1008,SS304L,SS316L,Other
Packing Flexible Graphite, Other
Bolts/Nuts A193 Gr.B7 (M)/A194 Gr.2H (M), A320 Gr.L7 (M)/ A194 Gr.7 (M) or Gr.4 (M), A193 Gr.B16/ A194 Gr.7, A193 Gr.B8/ A194 Gr.8,
A193 Gr.B8M/A194 Gr.8M,A453 Gr.660,Other
Note

*We also manufacture Flange Ball Valve, Gate Valve, Globe Valve, Check Valve, Butterfly Valve & Y Strainer

*For More information for our products,pls kindly contact with us freely.

We also spercial produce of Flange Ball Valve, Gate Valve, Globe Valve, Check Valve, Butterfly Valve & Y Strainer.Any inquiry for these valves,pls let us know freely by sales@cncxvalve.com

We will give you best price immediately,and meanwhile,we will supply better service with your other suppliers.Why not have a try.

API600,BB,OS&Y,Cast steel A216WCB,Flexible wedge,Gate Valve, 18 Inch, 900LB, BW,Worm Gear

API600,BB,OS&Y,Cast steel A216WCB,Flexible wedge,Gate Valve, 18 Inch, 900LB, BW,Worm Gear

API600,BB,OS&Y,Cast steel A216WCB,Flexible wedge,Gate Valve, 18 Inch, 900LB, BW,Worm Gear
