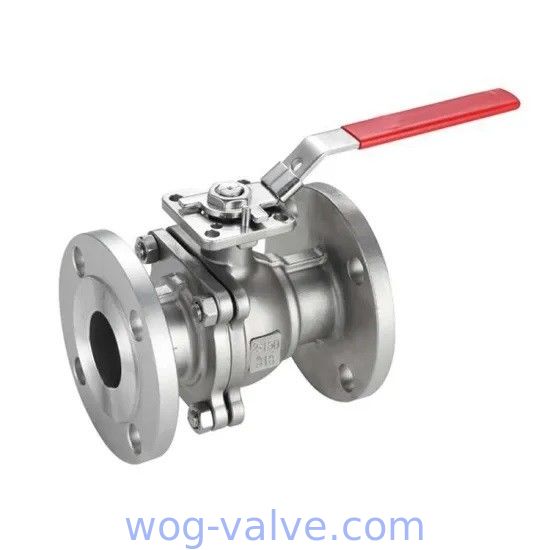

2 Piece Ball Valve Manual JIS10K、20K Stainless Steel CF8/SUS304

Detailed Product Description Structure: 2 PIECE Connection: Flange Pressure: 10K,JIS20K,ANSI150LB,300LB,PN16 Size: 1/2" To 24" Medium: Water Oil Gas High Light: ss ball valve ,
Model Number:
CX-2PC-FBV122
Minimum Order Quantity:
1PC
Prices:
Negotiable
Packaging Details:
Plywood case
Delivery Time:
depends on the qty of order
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
1,000pcs per month
Place of Origin:
WENZHOU,CHINA
Certification:
CE, ISO9001

Detailed Product Description

Structure: 2 PIECE Connection: Flange
Pressure: 10K,JIS20K,ANSI150LB,300LB,PN16 Size: 1/2" To 24"
Medium: Water Oil Gas
High Light: ss ball valve ,  full bore ball valve

2 Piece Ball Valve Manual JIS 10K/20K CF8/SUS304 Stainless Steel

Applicable Standards:
- Design and Manufacturing: ASME B16.34, API 608

- Flange Connection: JIS B2212 ~ B213

- Fireproof Test: API607 4th 1993

- Test and Inspection: JIS B2003, API6D

Size Range:
- 15A ~ 200A

Pressure Rating:
- JIS 10K 20K
Temperature Range:
- -20°C~185°C

Ball valves shut off the flow of water using a ball, inside the valve. When in the "on" position, the opening is in line with the pipe, allowing water to flow freely. When in the "off" position, the opening is perpendicular to the flow of water, stopping the flow completely. In a ball valve, flow is controlled with a lever. Placing the lever perpendicular to the pipe allows water to flow. Moving it at 90-degree angle stops the flow.

Unit:mm
Pressure Size L φE φB φC T f
10K 15 108 95 70 52 12 1
20 117 100 75 58 14 1
25 127 125 90 70 14 1
32 140 135 100 80 16 2
40 165 140 105 85 16 2
50 178 155 120 100 16 2
65 190 175 140 120 18 2
80 203 185 150 130 18 2
100 229 210 175 155 18 2
125 356 250 210 185 20 2
150 394 280 240 215 22 2
200 457 330 290 265 22 2

Application

Ball Valves are used for flow and pressure control and shut off for corrosive fluids, slurries, normal liquid and gases.
They are used in the oil and natural gas industry, but also find a place in many manufacturing sectors, chemical storage, and even residential uses.

Why choose ball valve

1. They contain a compact and low-maintenance design that requires no lubrication

2. They are cost-effective among all of the valves

3. The biggest advantage of ball valves is that they have poor throttling characteristics that can cause the seat of a ball valve to easily erode.

4. They provide leak-proof service.

5. They open and close quickly.

6. Ball valves have multi-way design flexibility.

Model Selection

2PC Full Port Floating Ball Valve

Standard ANSI GB JIS DIN
Pressure 150LB/300LB PN16/PN25/PN40 10K/20K PN16/PN25/PN40
Matreial 1) CF8/SS304 2) CF8M/SS316 3) CF3/SS304L 4) CF3M/SS316L 5) WCB
Model 1) High Platform Model 2) Handle Model
