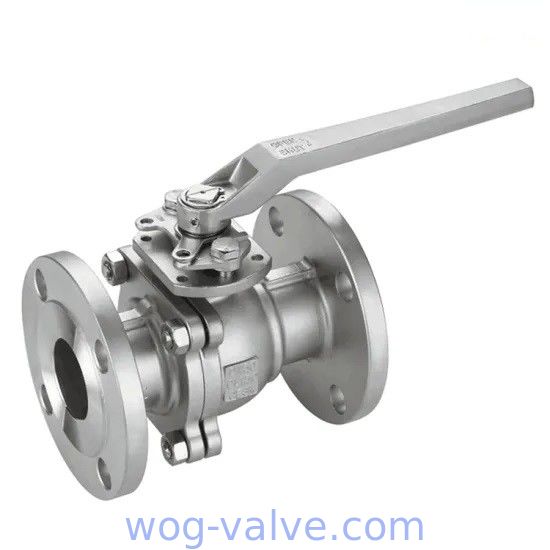

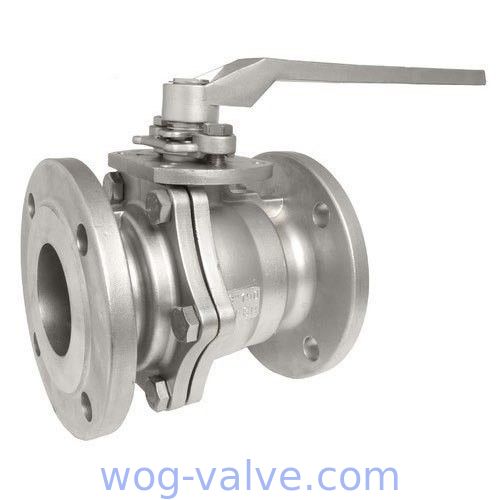

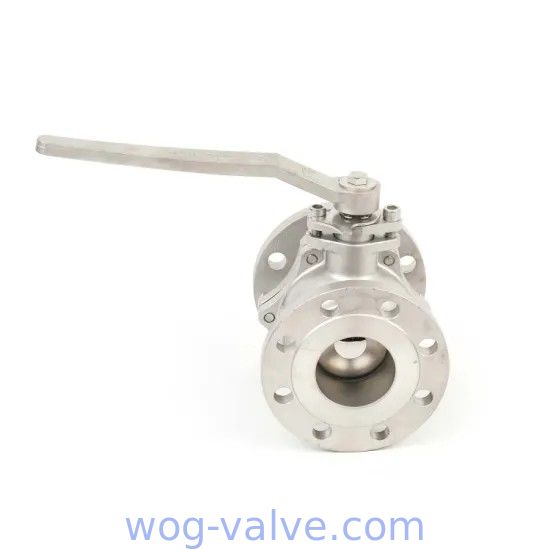

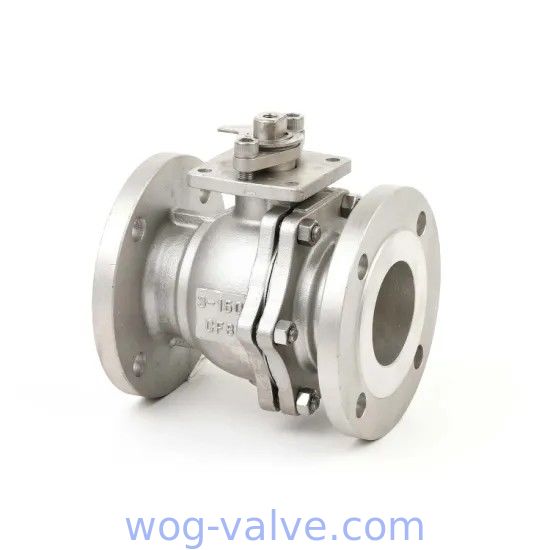

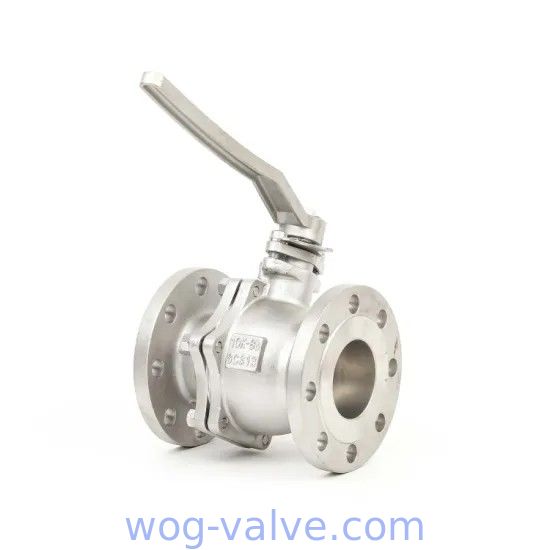

2pc Flanged Ball Valve SCS13 SCS14 50A 80A JIS10K Handle operated

Detailed Product Description Standard: JIS Body Material: SCS13,SCS14,SS304 SS316 Pressure: 10K,20K Size: DN15~DN200 Structure: Split Body Connection: Flange High Light: wa
Model Number:
CX-2PC-BV001
Minimum Order Quantity:
1PC
Prices:
Negotiable
Packaging Details:
Carton and plywood case
Delivery Time:
depends on the qty of order
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
1,000pcs per month
Place of Origin:
WENZHOU,CHINA
Certification:
API,ISO,CE

Detailed Product Description

Standard: JIS Body Material: SCS13,SCS14,SS304 SS316
Pressure: 10K,20K Size: DN15~DN200
Structure: Split Body Connection: Flange
High Light: wafer type ball valve ,  ss ball valve

2pc body Floating type SCS13,SCS14,Flanged Ball Valve,50A,80A,JIS10K,Handle operated

Applicable Standards:
- Design and Manufacturing: ASME B16.34, API 608

- Flange Connection: JIS B2212 ~ B213

- Fireproof Test: API607 4th 1993

- Test and Inspection: JIS B2003, API6D

Size Range:
- 15A ~ 200A

Pressure Rating:
- JIS 10K 20K
Temperature Range:
- -20°C~185°C

Ball valves shut off the flow of water using a ball, inside the valve. When in the "on" position, the opening is in line with the pipe, allowing water to flow freely. When in the "off" position, the opening is perpendicular to the flow of water, stopping the flow completely. In a ball valve, flow is controlled with a lever. Placing the lever perpendicular to the pipe allows water to flow. Moving it at 90-degree angle stops the flow.

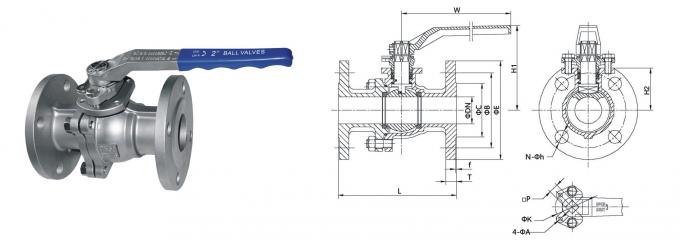

Unit:mm
Pressure Size L φE φB φC T f
10K 15 108 95 70 52 12 1
20 117 100 75 58 14 1
25 127 125 90 70 14 1
32 140 135 100 80 16 2
40 165 140 105 85 16 2
50 178 155 120 100 16 2
65 190 175 140 120 18 2
80 203 185 150 130 18 2
100 229 210 175 155 18 2
125 356 250 210 185 20 2
150 394 280 240 215 22 2
200 457 330 290 265 22 2


Application

Ball Valves are used for flow and pressure control and shut off for corrosive fluids, slurries, normal liquid and gases.
They are used in the oil and natural gas industry, but also find a place in many manufacturing sectors, chemical storage, and even residential uses.

Advantage

1. Light weight, reduced vibrations on pipe lines

2. Quick and easy to close, lever position indicates whether the valve is open or closed

3. Easy to mount: with flanged joints

4. Easy to service and repair: can be removed from the piping without taking off the fastening flanges

5. Reliable and trouble-free operation in all positions and only a slight loss of flow

Model Selection

2PC Full Port Floating Ball Valve

Standard ANSI   JIS DIN
Pressure 150LB/300LB   10K/20K PN16/PN25/PN40
Matreial 1) CF8/SS304 2) CF8M/SS316 3) CF3/SS304L 4) CF3M/SS316L 5) WCB
Model 1) High Platform Model 2) Handle Model

2pc Flanged Ball Valve  SCS13 SCS14 50A 80A JIS10K Handle operated 0
