Detailed Product Description

Ball Material:	A216WCB,SS304,SS316,etc...	Body Material::	CF8,CF8M,WCB,CF3,CF3M
Seat Material:	PTFE,RPTFE,PPL,etc...	Port Model:	L Port /T Port
Pressure:	PN16/1000WOG,PN40	Connection:	Flange
High Light:	wafer type ball valve , full bore ball valve

3 Way Flanged Ball Valve Square Body with ISO5211 Mounting Pad

CX Valve is a industry valves manufacturer, including Thread & Flange Ball Valves, Three Way Ball Valve, Gate Valves, Globe Valves, Check Valves, Y Strainers in stainless steel, carbon steel, cast steel, forged steel and alloy steel.
Thread 3 Way Ball Valve, Flange 3 Way Ball Valve, T Port Thread 3 Way Ball Valve, L Port Thread 3 Way Ball Valve, Flange 3 Way T Port Ball Valve, Flange 3 Way L Port Ball Valve, Three Way Stainless Steel T/L Port Ball Valve with ISO5211 Direct Mounting Pad.
Three- and four-way have an L- or T-shaped hole through the middle. The different combinations of flow are shown in the figure. It is easy to see that a T valve can connect any pair of ports, or all three, together, but the 45 degree position which might disconnect all three leaves no margin for error. The L valve can connect the center port to either side port, or disconnect all three, but it cannot connect the side ports together.
Flange 3 Way Bal Valve is a true multi-way ball valve with balanced 4-seat construction. This full port valve is available in a variety of flow plans which can replace multiple 2-way valves in a process system. A standard ISO 5211 pattern mounting pad allows for easy assembly of pneumatic and electric actuators.

Product Features:

Float ball/Trunnion Ball option.
L type and T type port for choice.
Blow-out stem proof design.
PTFE/RPTFE/PPL seat seal (Seat seal material could be decided by customer's request or according to valve's medium & temp. condition).
ISO 5211 high mounting pad for option.
Fire-proof and anti-static design if need.
Operation: Hand wheel, Lockable handle, Pneumatic actuator & Electric Actuator.

Product Name	3 Way Flanged Ball Valve Square Body with ISO5211 Mounting Pad
1. Material	SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M), WCB, etc.
2. Size	1/2~8 inch (DN15~DN200)
3. Connection ends	Flange
4. Port	Reduce Port
5. Working Pressure	150LB~300LB
8. Working Temp.	-20~200ºC, or according to customer requirements for different industry.
9. Suitable Medium	Water, Natural Gas, Oil and some corrosive liquid
10.Design & manufacture standard	API6D
11. Pressure & Temp. standard	ASME 16.34
12. Face to face dimension standard	ASME 16.10
13. Flange standard	ASME16.5/16.34
14. Inspection & Testing	API598, API6D
15. Certificate	ISO9001:2008, CE & TS
Shipment
Delivery Time	15~20 Days
Package	Standard Exporting Plywood Case
Shipping Port	Ningbo/Shanghai, China
Shipping Terms	Exw, FOB, CFR, CIF, etc.
Payment Terms	T/T, Western Union, PayPal, etc.
	30% prepayment, 70% balance paid before shipping.
Country of Origin	Wenzhou city, China
Production Capacity	1000 sets/Month
MOQ	10 PCS/size

Competitive Advantage:

1. 18 Months Guarantee for quality.
2. OEM manufacturer, print client's LOGO on the valve body.
3. Offer Operation Manual & Install Introduction for safety use.
4. Offer manufacturer's reasonable price to win the market for both.
5. Accept any the third party inspection.
6. As a factory, every production process can be controlled during manufacture.
7. Offer inspection & testing reports for raw materials, production process, wall thickness, face to face dimension, pressure test, welding test, painting test, etc.

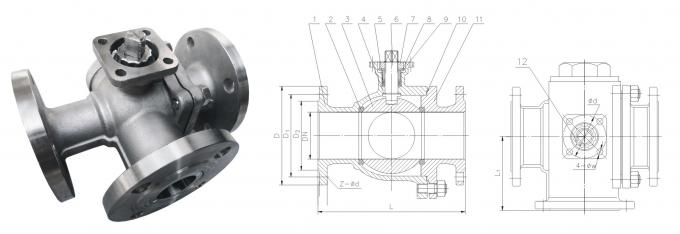

3 Way Flanged Ball Valve L Port Square Body With ISO5211 Mounting Pad 0
