API 6D Side Entry Floating,A216WCB, Class 150, RF 3inch flanged ball valve

Detailed Product Description Operation: Lever,Gear,Motor,etc.. Material: A216WCB,A351CF8/CF8M/CF3M/F304/F316L Size: DN15~DN200 Standard: API6D/API607/API608/ASME B16.34 Connection:
Model Number:
CX-2PC-ANSI150
Minimum Order Quantity:
1PC
Prices:
Negotiable
Packaging Details:
Carton and plwooden case
Delivery Time:
depends on the qty of order
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
1,000pcs per month
Place of Origin:
WENZHOU,CHINA
Certification:
API,ISO,CE

Detailed Product Description

Operation: Lever,Gear,Motor,etc.. Material: A216WCB,A351CF8/CF8M/CF3M/F304/F316L
Size: DN15~DN200 Standard: API6D/API607/API608/ASME B16.34
Connection: Flange,BW,Thread

Product Description

2PC Body Full Port Flanged stainless steel CF8/CF8M/304/316/1.4408 Ball Valve,150LB/300LB

CX VALVE is one of the professional Ball Valve Manufacturer in china. We supplies: floating ball valve,trunnion ball valve,metal seated ball valve,threaded end ball valve,butt welded ball valve,Forged steel ball valve etc, We can manufacture and supply ball valve according to your requirements Main material of the products are A105N, WCB, C5,WC6, WC9,CF8, CF8M, 316 and so on. Tops Valve design by the standards of API6D, ASME, ANSI, JIS, DIN, BS, etc.


Specification:

Product Name

2PC Body Full Port Flanged stainless steel CF8/CF8M/304/316/1.4408 Ball Valve,150LB/PN16

1. Material

SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M), WCB, etc.

2. Size

1/2~8 inch ( DN15~DN200)

3. Thread standard

ISO9001 & CE

4. Port

Full Port,Reducer Port

5. Working Pressure

150LB~1500LB,PN16~PN100,JIS10K,JIS20K

6. Connection Ends

Flange,BW,SW,Thread

7. Working Temp.

-20~200ºC, or according to customer requirements for different industry.

8. Suitable Medium

Water, Natural Gas, Oil and some corrosive liquid

9. Operated

Handle operated, Locking device is option

10. Inspection & Testing

According to API598

Shipment



Delivery Time

Normally 30~45 Days

Package

Standard Exporting Plywood Case

Shipping Port

Ningbo/Shanghai, China

Shipping Terms

Exw, FOB, CFR, CIF, etc.

Payment Terms

T/T, Western Union, PayPal, etc.



30% prepayment, 70% balance paid before shipping.

Country of Origin

Wenzhou city, China

Production Capacity

1000 sets/month

MOQ

10 PCS/size


Technical Specification:

  1. Design & Manufacture standard: API 6D, API 608, BS 5351.

  2. Pressure & Temperature standard: ASME B16.34.

  3. Face to face dimension standard: ASME B16.10.

  4. Flange standard: ASME B16.5, ASME B16.47.

  5. Test & Inspect standard: API 598, API 6D.


Product Feature:

  1. Floating ball, full bore or reduce bore.

  2. ISO5211 mounting pad for option.

  3. Blow-out proof stem design.

  4. PTFE/RPTFE seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. condition).

  5. Fire-proof and anti-static design if need.

  6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.

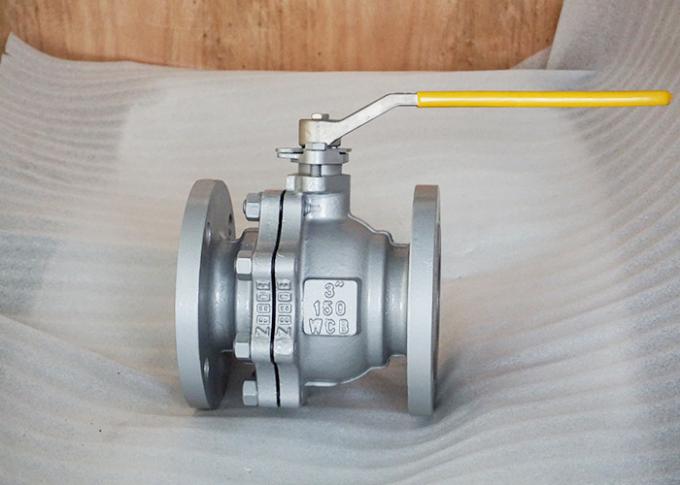

API 6D Side Entry Floating,A216WCB, Class 150, RF 3inch flanged ball valve 0

API 6D Side Entry Floating,A216WCB, Class 150, RF 3inch flanged ball valve 1

API 6D Side Entry Floating,A216WCB, Class 150, RF 3inch flanged ball valve 2

API 6D Side Entry Floating,A216WCB, Class 150, RF 3inch flanged ball valve 3
