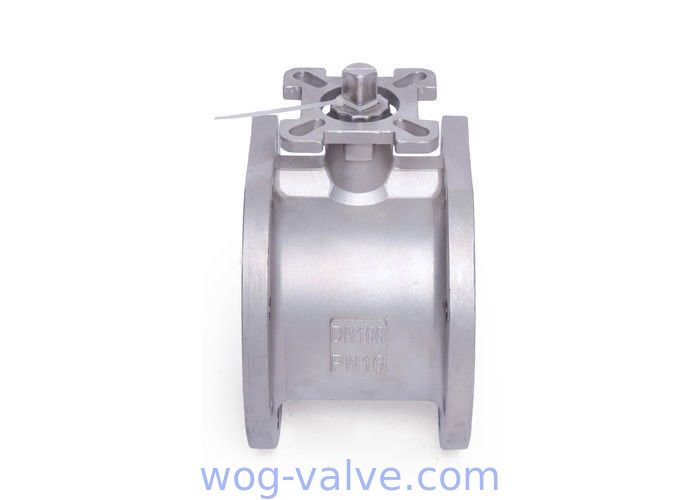

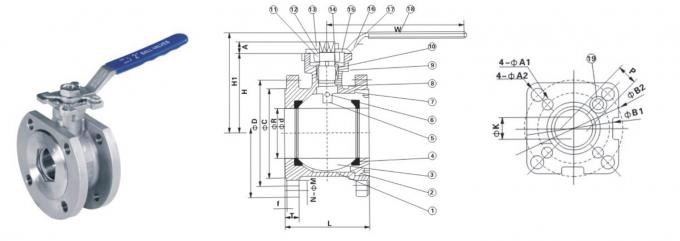

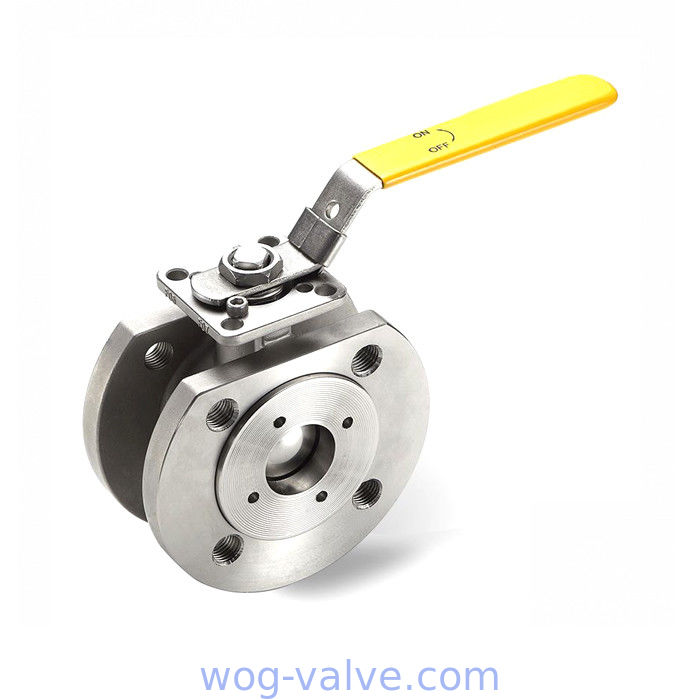

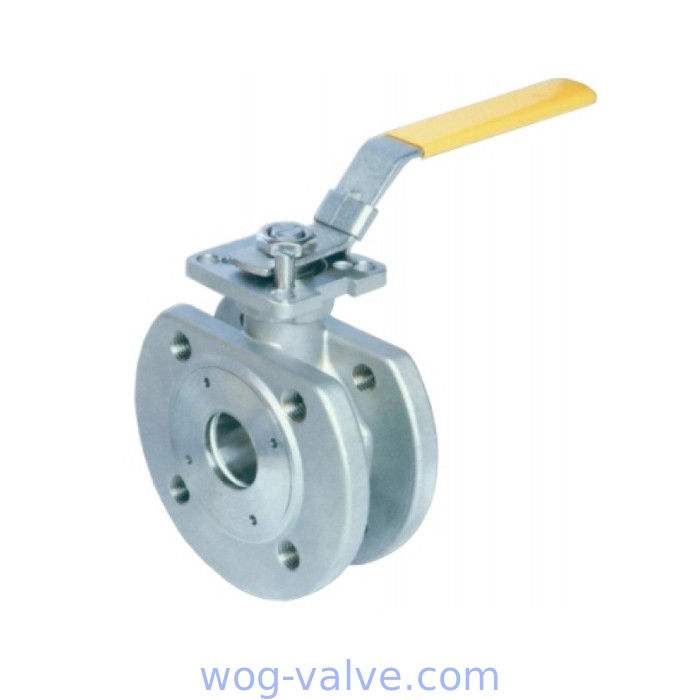

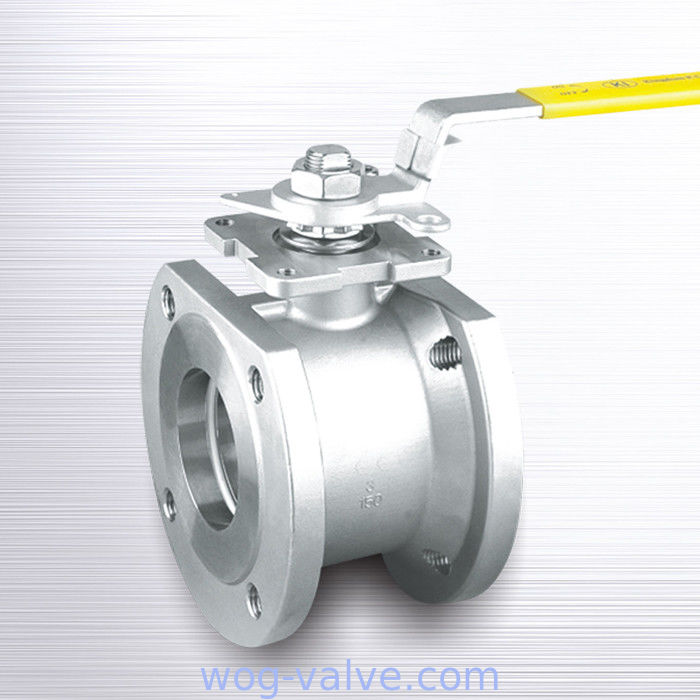

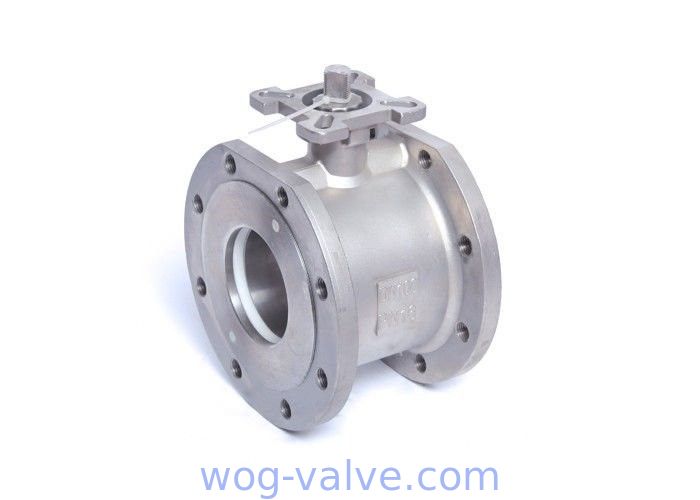

Wafer type Ball Valve Stainless Steel Full Port with ISO5211 Mounting Pad

Detailed Product Description Body Material: SS304 SS316 Ball Material: CF8,CF8M Seat Material: PTFE,RPTFE,PPL,etc... Structure: Wafer Ball Valve Size: DN15 ~ DN100 Standard: DI
Model Number:
CX-WBV-DIN04
Minimum Order Quantity:
1PC
Prices:
Negotiable
Packaging Details:
Carton and plywood case
Delivery Time:
depends on the qty of order
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
1000SETS/Mouth
Place of Origin:
WENZHOU,CHINA
Certification:
CE, ISO9001

Detailed Product Description

Body Material: SS304 SS316 Ball Material: CF8,CF8M
Seat Material: PTFE,RPTFE,PPL,etc... Structure: Wafer Ball Valve
Size: DN15 ~ DN100 Standard: DIN
High Light: ss ball valve ,  full bore ball valve

Features and Benefits:

  1. Blow-out Proof Stem
  2. Anti-Static Device for Ball-Stem-Body
  3. Pressure Balance Hole in Ball Slot
  4. 2 Belleville Washer to Self-adjust Packing
  5. ISO 5211 Direct Mounting Pad for Easy Automation
  6. Locking Device Spring Handle , New Design
  7. Fire-Safe Design Available
  8. Design standard: ASME B16.34,API 608
  9. Wall Thickness standard: EN12516-1
  10. Flange End:ASME B16.5 CLASS 150/300, DIN 2653 PN10-PN40, JIS B2238 10K/20K
  11. Inspection & Testing:API 598,EN 12266


Operating / Test Conditions:

  1. Temperature Range:-20ºC to 200ºC
  2. Working Pressure: 10K/150LB~300LB/PN16~PN40
  3. Working Medium: Water, Oil, Gas, Acid, etc
  4. Flange End:ASME B16.5 ,CLASS 150/300,DIN PN10-40,JIS B2220 10K/20K
  5. Design: ANSI/ASME B16.34
  6. Inspection&Testing: API 598,BS EN 12266


Options:

  1. Body Material:ASTM A351-CF8M,CF8, CF3,CF3M, ASTM A216-WCB,A105, etc.
  2. Locking Device Spring Handle Available
  3. Fire-Safe Design Available


Competitive Advantage:

  1. 18 Months Guarantee for quality.
  2. OEM manufacturer, print client's LOGO on the valve body.
  3. Timely delivery. 15 days for standard products. 30 days for non-standard products to make new mould.
  4. 100% leakage test after assembly.
  5. As a factory, every production process can be controlled during manufacture.
  6. Offer inspection & testing reports for raw materials, production process, wall thickness, face to face dimension, pressure test, welding test, painting test, etc.
Product Name Wafer type Ball Valve Stainless Steel Full Port with ISO5211 Mounting Pad
1. Material SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M), WCB, etc.
2. Size 1/2~4 inch (DN15~DN100)
3. Connection ends Wafer Type ends
4. Port Full Port
5. Working Pressure 150LB~300LB/PN16~PN40
8. Working Temp. -20~300ºC, or according to customer requirements for different industry.
9. Suitable Medium Water, Natural Gas, Oil and some corrosive liquid
10. Operated Handle or Handle with locking device
15. Inspection & Testing API598, EN12266
16. Certificate ISO9001:2008, CE & TS
Shipment
Delivery Time  Normally within 35 Days EXW.
Package Standard Exporting Plywood Case
Shipping Port Ningbo/Shanghai, China
Shipping Terms Exw, FOB, CFR, CIF, etc.
Payment Terms T/T, Western Union, PayPal, etc.
  30% prepayment, 70% balance paid before shipping.
Country of Origin Wenzhou city, China
Production Capacity 1000 Set/Month
MOQ 10 PCS/size

Wafer type Ball Valve Stainless Steel Full Port with ISO5211 Mounting Pad
