2 Pieces Side Entry Ball Valve Cast Steel Side API ASME ANSI Standards

Detailed Product Description Media: Oil,Gas Material: Carbon Steel Connection Form: Flanged Driving Mode: Manual Nominal Pressure: ANSI CLASS 150-2500 Structure: Floating Ball
Model Number:
CX-2PC-ABV02
Minimum Order Quantity:
1PC
Prices:
Negotiable
Packaging Details:
Wooden Case
Delivery Time:
depends on the qty of order
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
1000SETS/Mouth
Place of Origin:
WENZHOU,CHINA
Certification:
API,ISO,CE

Detailed Product Description

Media: Oil,Gas Material: Carbon Steel
Connection Form: Flanged Driving Mode: Manual
Nominal Pressure: ANSI CLASS 150-2500 Structure: Floating Ball Valve
Function: Blow-Down Valve Temperature: Normal Temperature
Standard: BS5351 Application: Industrial Usage, Water Industrial Usage, Household Usage
Body / Ball / Stem / Seat: 4A(2205), 5A(2507), C5, C12A, Wc6, Wc9,Inconel 625
High Light: industrial ball valve ,  split body ball valve

Cast Steel Side Entry Industrial Floating Ball Valve

CX Valve manufactures some of the most dependable cast and forged steel Ball Valves in the industry. Our products are manufactured and tested in accordance with respective API, ASME, and ANSI standards. With features such as double block and bleed capabilities, secondary sealant injections, and spring energized self relieving seats, the CX Valve design offers many features and options beneficial for oil, gas, and liquid applications making it one of the most preferred ball valves on the market.

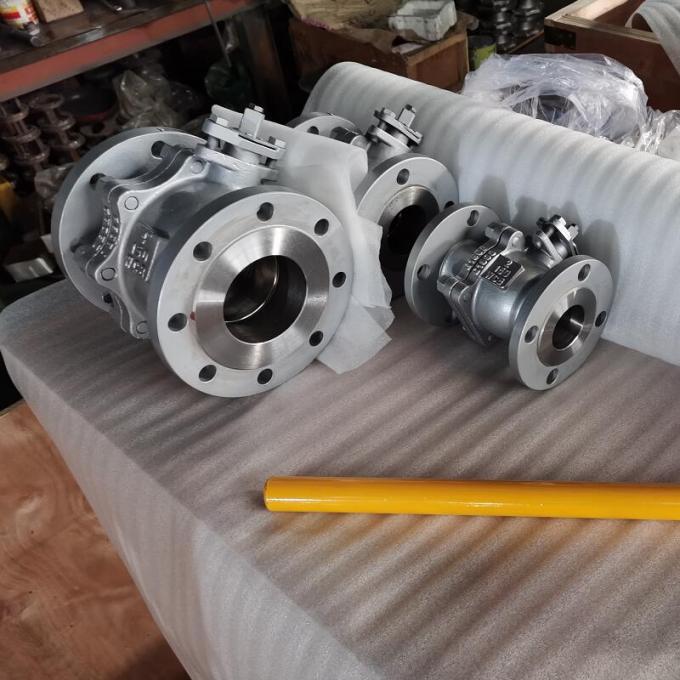

2 Pieces Side Entry Ball Valve Cast Steel Side API ASME ANSI Standards 0

Design Features

  • Full port, 1/2"~6" (DN15~DN150)
  • W.P. : CLASS 150-300
  • W.T. : -20°C~200°C (-4°F~392°F)
  • Investment casting
  • Blow-out proof stem
  • Silicone Free
  • Anti-static device (option)
  • Locking device
  • Mounting pad ISO 5211
  • Flange dimension: ASME B16.5
  • Face to face: ASME B16.10

Material Selection for Ball Valves:

  • Carbon Steel (A105-WCB, WCC)
  • Low Temperture Carbon Steel (LF2-LCC, LCB)
  • Stainless Steel (SS304, SS304L, SS316, SS316L, SS347, 904L)
  • Low Alloys (F1-WC1, F11-WC6, F22-WC9)
  • High Alloys (F5-C5, F9-C12,F91-C12A, F62-CN3MN, F20-Alloy 20 )
  • Duplex & Super Duplex (2205-4A, 2507-5A, S32760-6A)
  • Bronze (C95800, C95500, C95400)
  • Inconel (Inconel 625, Inconel 825)

Remarks: The above materials are applicable to valve body. Contact CX Valve for the valve component material.

2 Pieces Side Entry Ball Valve Cast Steel Side API ASME ANSI Standards 1

2 Pieces Side Entry Ball Valve Cast Steel Side API ASME ANSI Standards 2

2 Pieces Side Entry Ball Valve Cast Steel Side API ASME ANSI Standards 3

2 Pieces Side Entry Ball Valve Cast Steel Side API ASME ANSI Standards 4

2 Pieces Side Entry Ball Valve Cast Steel Side API ASME ANSI Standards 5

2 Pieces Side Entry Ball Valve Cast Steel Side API ASME ANSI Standards 6

2 Pieces Side Entry Ball Valve Cast Steel Side API ASME ANSI Standards 7
