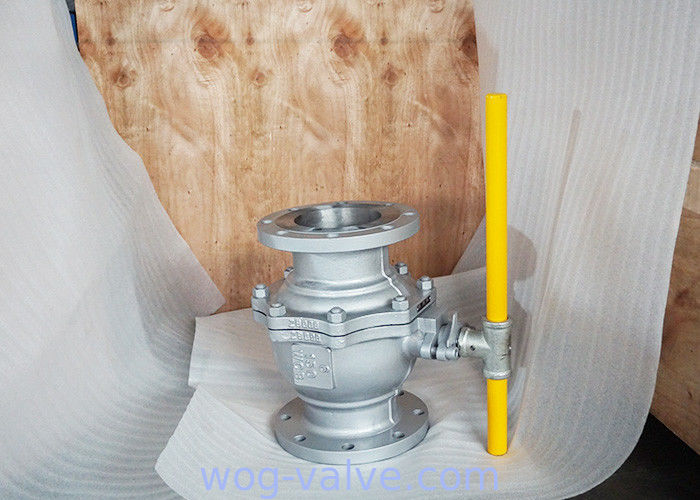

Carbon Steel Flanged Ball Valve 150LB Lever 2 Piece Full Port Ball Valve API6D API608 RF ANSI
Detailed Product Description
Type:
2 PC Ball Valve
Body Material:
Carbon Steel A216 WCB
Trim:
SS304/SS316
Rating:
ANSI 150 LB
Size:
3 Inch(DN80)
Ends:
RF,FF
Standard:
API 6
- Model Number:
- CX-3PCTVC
- Minimum Order Quantity:
- 1PC
- Prices:
- Negotiable
- Packaging Details:
- Carton and wood case
- Delivery Time:
- depends on the qty of order
- Payment Terms:
- L/C, D/A, D/P, T/T, Western Union, MoneyGram
- Supply Ability:
- 10,000pcs per month
- Place of Origin:
- WENZHOU,CHINA
- Certification:
- API,ISO,CE
Detailed Product Description
| Type: | 2 PC Ball Valve | Body Material: | Carbon Steel A216 WCB |
|---|---|---|---|
| Trim: | SS304/SS316 | Rating: | ANSI 150 LB |
| Size: | 3 Inch(DN80) | Ends: | RF,FF |
| Standard: | API 6D,API608 | Port: | Ningbo Port/Shanghai Port, China |
| High Light: | industrial ball valve , split body ball valve | ||
API6D,API608,2 Piece Body full port carbon steel flanged ball valve,RF,ANSI 150LB,Lever Operated Key Specifications / Features
Valve description:
Name: Side entry trunnion mounted ball valve, 2-PC type.
Design: API 6D.
Body: ASTM A216 WCB.
Nominal size: 8 Inch.
Nominal class: Class 600.
Connection ends: RF flanged ends.
Face to face: as per ASME B16.10.
Test and inspection: API 598.
Technical parameters and characteristics
| Product | Side Entry Trunnion Mounted Ball Valve | |
| Nominal diameter | 2" - 56" | (DN50-DN1400) |
| Design temp. | -46℃ - 121℃ | |
| Design pressure | class 150 - 2500 | (PN16-PN420) |
| Material | WCB, LCB, CF8M, A105, LF2, F316 | |
| Design standard | API 6D, ISO 17292 | |
| Face to face | ASME B16.10 | EN558 series |
| Connection end | ASME B16.5, ASME B16.25 | EN1092-1 series |
| Test standard | API 598, API 6D | EN 12266-1 |
| Operation | level, worm gear, electric, pneumatic | |
| Application fields | water, petroleum and natural gas | |
| Feature 1 | full bore, reduce bore | |
| Feature 2 | locking device | |
| Feature 3 | anti-blow out stem | |
| Feature 4 | fire safe and Anti-static device | |
| Feature 5 | DBB / double block and bleed | |
| Feature 6 | stem & seats to be equipped injection fitting | |
