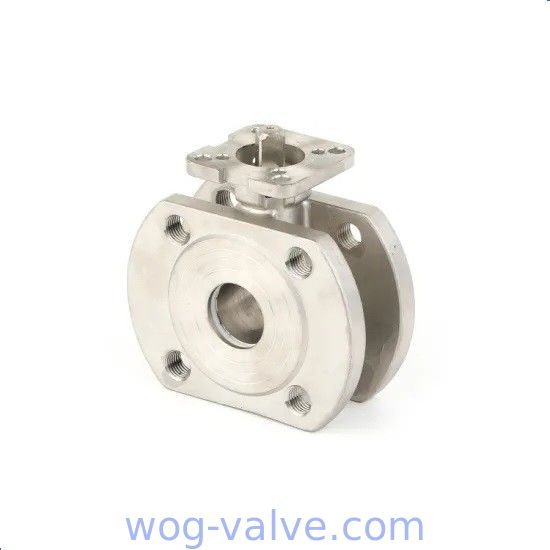

DIN PN16 150LB Wafer Type Ball Valve with ISO5211 Mounting Pad
Detailed Product Description
Type:
Wafer Ball Valve
Material:
CF8M,CF8,1.4408,1.4308,1.0619
Size:
DN15~DN150
Surface Treatment:
Pickling
Rating:
DIN PN16~PN40
Port:
Ningbo, Chi
- Model Number:
- CX-WBV-02
- Minimum Order Quantity:
- 1PC
- Prices:
- Negotiable
- Packaging Details:
- Plywood Case
- Delivery Time:
- depends on the qty of order
- Payment Terms:
- L/C, D/A, D/P, T/T, Western Union, MoneyGram
- Supply Ability:
- 10,000pcs per month
- Place of Origin:
- WENZHOU,CHINA
- Certification:
- API,ISO,CE
Detailed Product Description
| Type: | Wafer Ball Valve | Material: | CF8M,CF8,1.4408,1.4308,1.0619 |
|---|---|---|---|
| Size: | DN15~DN150 | Surface Treatment: | Pickling |
| Rating: | DIN PN16~PN40 | Port: | Ningbo, China |
| High Light: | industrial ball valve , split body ball valve | ||
Wafer Type Ball Valve with ISO5211 Mounting Pad,DIN PN16,P40,CLASS:150LB
Features and Benefits:
- Live-Loaded Stem Packing
- Provides constant load on the stem seal and extends service life
- Blow-Out-Proof Stem
- Stem is bottom loaded to prevent removal when valve is in service
- Anti-Static Device
- Pressure Balance Hole in Ball Slot
- 2 Belleville Washer to Self-adjust Packing
- ISO 5211 Mounting Pad for easy automation
Operating / Test Conditions:
- Temperature Range:-20ºC to 190ºC
- Working Pressure: 10K/150LB~300LB/PN16~PN40
- Working Medium: Water, Oil, Gas, Acid, etc
- Flange End:ASME B16.5 ,CLASS 150/300,DIN PN10-40,JIS B2220 10K/20K
- Design: ANSI/ASME B16.34
- Inspection&Testing: API 598,BS EN 12266
Options:
- Body Material:ASTM A351-CF8M,CF8, CF3,CF3M, ASTM A216-WCB,A105, etc.
- Locking Device Spring Handle Available
- Fire-Safe Design Available
| Product Name | Stainless Steel Full Port Flange Wafer Type Ball Valve |
| 1. Material | SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M), WCB, etc. |
| 2. Size | 1/2~6 inch (DN15~DN150) |
| 3. Connection ends | Flange,Wafer |
| 4. Port | Reduce Port |
| 5. Working Pressure | 150LB~300LB/PN16~PN40 |
| 8. Working Temp. | -20~190ºC, or according to customer requirements for different industry. |
| 9. Suitable Medium | Water, Natural Gas, Oil and some corrosive liquid |
| 10. Operated | Handle or Handle with locking device |
| 15. Inspection & Testing | API598, EN12266 |
| 16. Certificate | ISO9001:2008, CE & TS |
| Shipment | |
| Delivery Time | Depends on the order of qty. |
| Package | Standard Exporting Plywood Case |
| Shipping Port | Ningbo/Shanghai, China |
| Shipping Terms | Exw, FOB, CFR, CIF, etc. |
| Payment Terms | T/T, Western Union, PayPal, etc. |
| 30% prepayment, 70% balance paid before shipping. | |
| Country of Origin | Wenzhou city, China |
| Production Capacity | 1000 PCS/Month |
| MOQ | 10 PCS/size |
Competitive Advantage:
- OEM/ODM is applicable
- Reasonable price
- 18 months warranty
- Timely delivery
- Good quality guarantee
- Professional timely after-sales service
