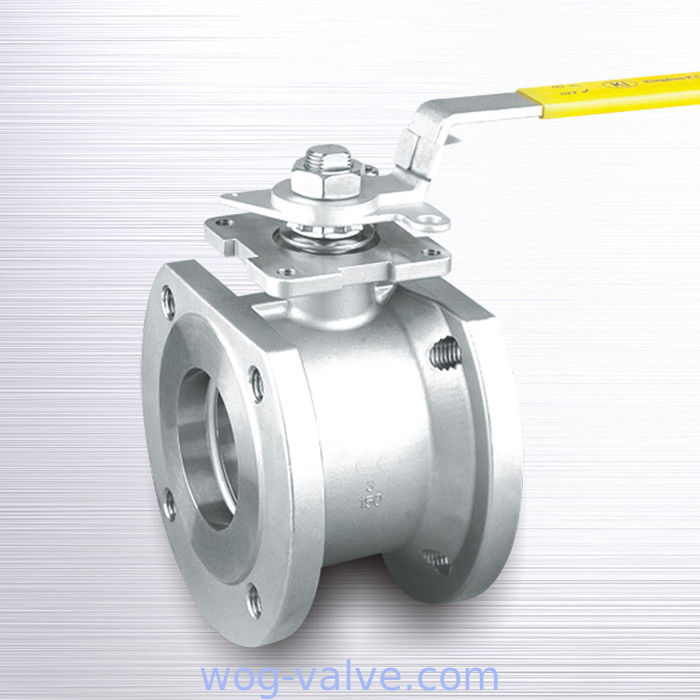

Lever Operated Floating Type Ball Valve 4 Inch 1.4408 Cf8m Material
Detailed Product Description
Size:
1/2"~4"
Pressure:
PN16/1000WOG,PN40
Material:
A216WCB,304/CF8,316/CF8M
Operation:
Lever Operated
High Light:
industrial ball valve , oil ball va
- Model Number:
- CX-WBV-DIN008
- Minimum Order Quantity:
- 1PC
- Prices:
- Negotiable
- Packaging Details:
- Carton and plwood case
- Delivery Time:
- depends on the qty of order
- Payment Terms:
- L/C, D/A, D/P, T/T, Western Union, MoneyGram
- Supply Ability:
- 10,000pcs per month
- Place of Origin:
- WENZHOU,CHINA
- Certification:
- CE, ISO9001,API
Detailed Product Description
| Size: | 1/2"~4" | Pressure: | PN16/1000WOG,PN40 |
|---|---|---|---|
| Material: | A216WCB,304/CF8,316/CF8M | Operation: | Lever Operated |
| High Light: | industrial ball valve , oil ball valve | ||
Wafer type ss Ball Valve,1.4408,cf8m material,with ISO5211 Mounting Pad,PN16,PN40
Specification:
- Full port, 1/2"~4" (DN15~DN100)
- W. P.:
PN16,PN40
CLASS 150 - W. T.:-20℃ ~200℃ (-4℉~392℉)
- Wafer type
- Investment casting
- Blow-out proof stem
- Anti-static device (option)
- ISO 5211 Mounting pad
MATERIAL
| ITEM | PARTS | MATERIAL | |
| 1 | BODY | ASTM A351-CF8M | ASTM A216-WCB |
| 2 | RETAINER | ||
| 3 | BALL | ASTM A351-CF8M | |
| 4 | ANTI-STATIC DEVICE | AISI 316 | |
| 5 | SEAT | RTFE | |
| 6 | SEAL | PTFE | |
| 7 | THRUST WASHER | ||
| 8 | PACKING | ||
| 9 | STEM | ASTM A276-316 | |
| 10 | HANDLE | STAINLESS STEEL | |
| 11 | GLAND NUT | AISI 304 | |
| 12 | STOP PIN | ||
| 13 | HANDLE SLEEVE | PVC | |
