Stainless Steel Industrial Ball Valve / Floating Oil Ball Valve Straight Through Type

Detailed Product Description Media: Oil Material: SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M), WCB, Etc. Connection Form: Flanged,Thread,BW,SW,etc... Driving Mode: Hand Wheel, Worm Wheel,
Model Number:
CX-2PC-FBV12
Minimum Order Quantity:
1PC
Prices:
Negotiable
Packaging Details:
Wooden Case
Delivery Time:
depends on the qty of order
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
1000SETS/Mouth
Place of Origin:
WENZHOU,CHINA
Certification:
API,ISO,CE

Detailed Product Description

Media: Oil Material: SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M), WCB, Etc.
Connection Form: Flanged,Thread,BW,SW,etc... Driving Mode: Hand Wheel, Worm Wheel, Pneumatic Actuator & Electric Actuator.
Nominal Pressure: ANSI CLASS 150-2500 Channel: Straight Through Type
Structure: Floating/Trunnion Mounted Ball Valve Function: Blow-Down Valve
Temperature: Normal Temperature Standard: BS5351
Application: Industrial Usage, Water Industrial Usage, Household Usage Body / Ball / Stem / Seat: A105, SS304, SS304L, SS316, SS316L, Ss347, 904L
High Light: oil ball valve ,  split body ball valve

Floating Stainless Steel Industrial Ball Valve

CX Valve manufactures some of the most dependable cast and forged steel Ball Valves in the industry. Our products are manufactured and tested in accordance with respective API, ASME, and ANSI standards. With features such as double block and bleed capabilities, secondary sealant injections, and spring energized self relieving seats, the CX Valve design offers many features and options beneficial for oil, gas, and liquid applications making it one of the most preferred ball valves on the market.

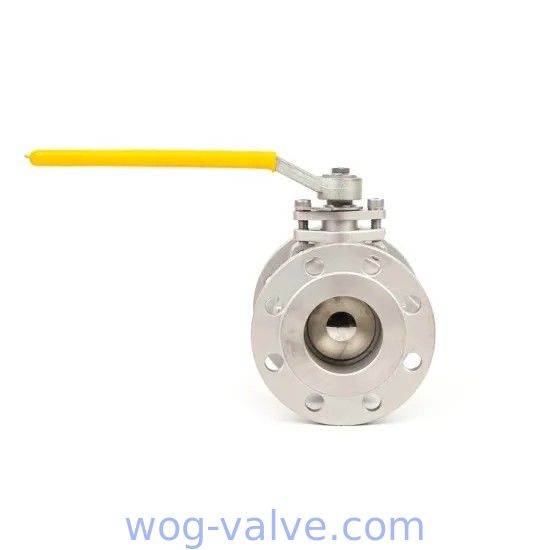

Stainless Steel Industrial Ball Valve / Floating  Oil Ball Valve Straight Through Type 0

Design Features

  • Full port, 1/2"~24" (DN15~DN600)
  • W.P. : CLASS 150-2500
  • W.T. : -20°C~200°C (-4°F~392°F)
  • Investment casting
  • Blow-out proof stem
  • Silicone Free
  • Anti-static device (option)
  • Locking device
  • Mounting pad ISO 5211
  • Flange dimension: ASME B16.5
  • Face to face: ASME B16.10

Material Selection for Ball Valves:

  • Carbon Steel (A105-WCB, WCC)
  • Low Temperture Carbon Steel (LF2-LCC, LCB)
  • Stainless Steel (SS304, SS304L, SS316, SS316L, SS347, 904L)
  • Low Alloys (F1-WC1, F11-WC6, F22-WC9)
  • High Alloys (F5-C5, F9-C12,F91-C12A, F62-CN3MN, F20-Alloy 20 )
  • Duplex & Super Duplex (2205-4A, 2507-5A, S32760-6A)
  • Bronze (C95800, C95500, C95400)
  • Inconel (Inconel 625, Inconel 825)

Remarks: The above materials are applicable to valve body. Contact CX Valve for the valve component material.

Stainless Steel Industrial Ball Valve / Floating  Oil Ball Valve Straight Through Type 1

Stainless Steel Industrial Ball Valve / Floating  Oil Ball Valve Straight Through Type 2
