UNS C95800 Aluminium Bronze Ball Valve ASME B16.10 Class 150 Pressure Ratings

Detailed Product Description Valve Types: Aluminium Bronze Ball Valve, ASTM B148 UNS C95800 Pressure Rating: Class 150 Size: 1/2"~10" Material: Aluminium Bronze ASTM B148 UNS C95800
Model Number:
CX-2PC-NBV03
Minimum Order Quantity:
1PC
Prices:
Negotiable
Packaging Details:
Plywood Case
Delivery Time:
depends on the qty of order
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
1,000pcs per month
Place of Origin:
WENZHOU,CHINA
Certification:
API,ISO,CE

Detailed Product Description

Valve Types: Aluminium Bronze Ball Valve, ASTM B148 UNS C95800 Pressure Rating: Class 150
Size: 1/2"~10" Material: Aluminium Bronze ASTM B148 UNS C95800
Design & Manufacturing Standard: API 6D Structure Length Size: ASME B16.10
Flange Connection Size: ASME B16.5 Pressure Test: API 598
Operator: Lever, Gear Operator Port: Ningbo, China
High Light: industrial ball valve ,  oil ball valve

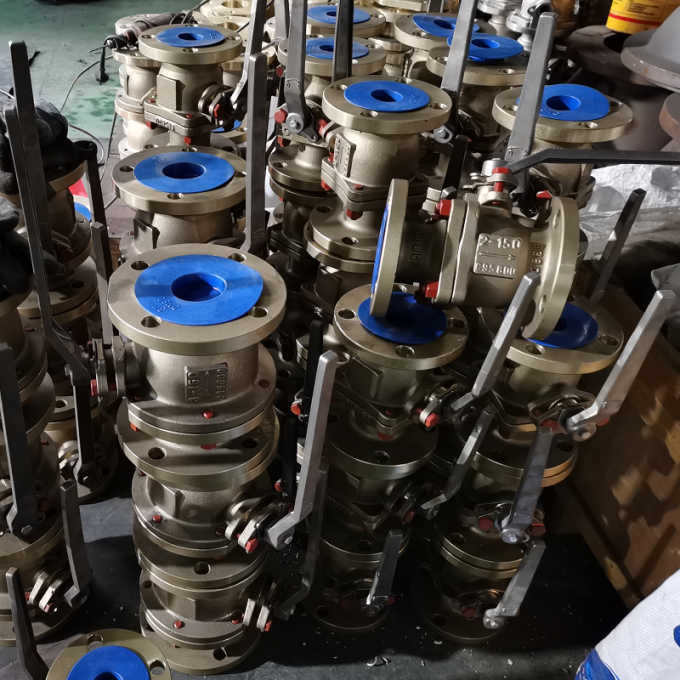

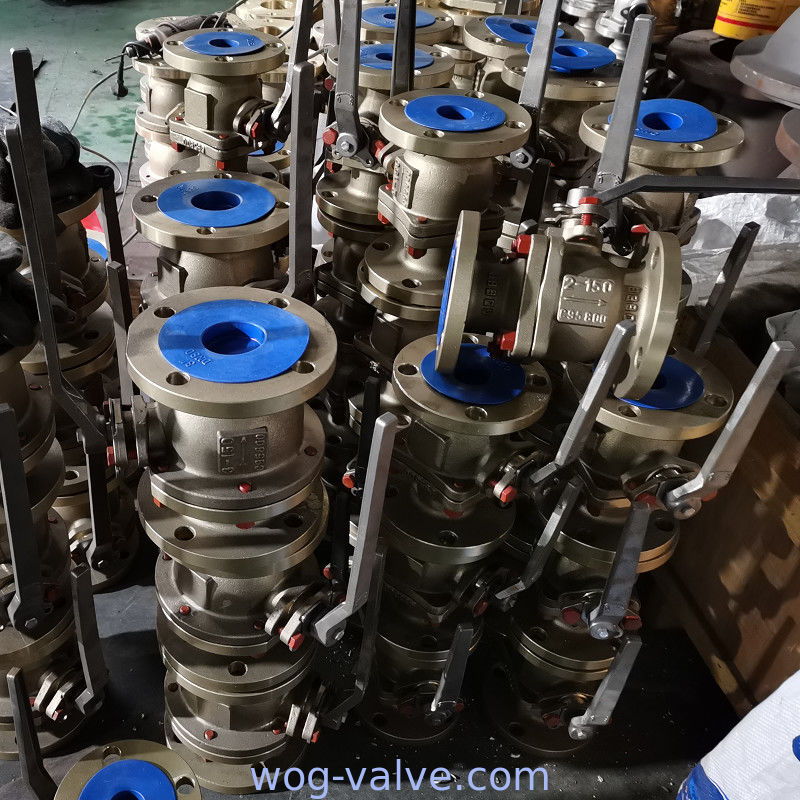

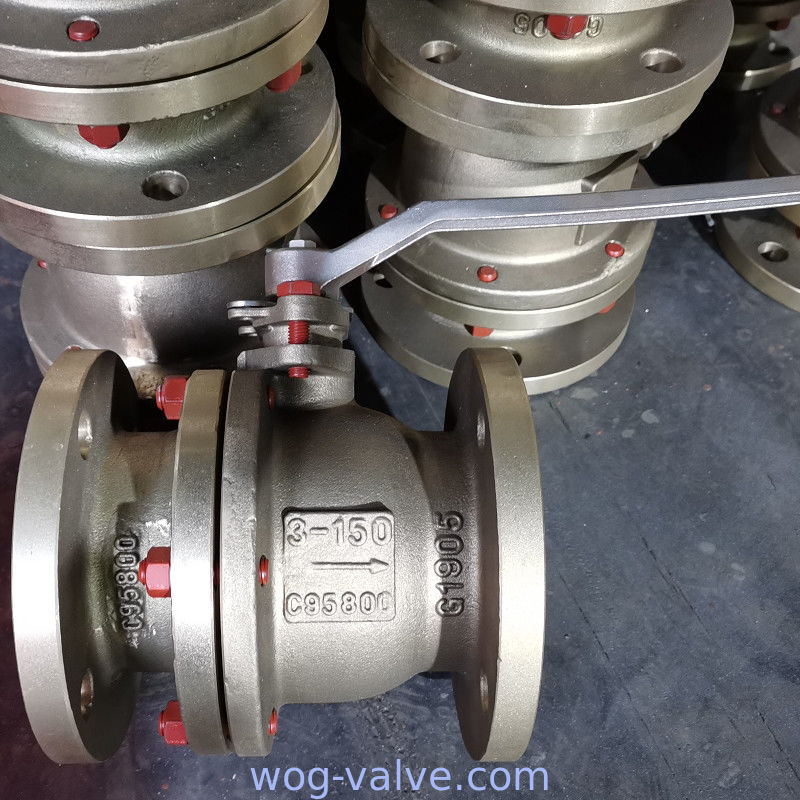

Nickel-Aluminum-Bronze (C95800) Split-Body Floating Ball Valve

UNS C95800 Floating Ball Valve, ASME B16.10

Flanged Ball Valves made from C95800 Nickel Aluminum Bronze (NAB) for the most demanding environments, especially suitable for seawater applications. Alloy 400 ball & stem w/ Nylon seats provide excellent chemical resistance and mechanical resilience. We offers a full range of floating and trunnion ball valves, from standard applications to extreme temperatures and pressures. Pick your body material, end connections and trim for your desired class & size or we can help you select the right materials based on your process conditions.

Shipham Model Number:

1

Size Range:

DN15 - DN300 / 0.5" - 12"

Design Standards:

BS EN ISO 17292 (BS 5351)

Pressure Ratings:

Class 150

End Connections:

Flanged ANSI B16.5 (Flat or Raised Face)

Face to Face:

ANSI B16.10

Description:

Reduced Bore, Floating Ball, PTFE or Reinforced PTFE Seats & Seals, Open and Close Indicator, Lever Operated, ANti-Static Device

Pressure Testing:

API 598 / BS EN 12266-1

Optional Extras:

Locking Devices, Actuation, Tagging & Marking

Specfication 1

Code

Body & Bonnet

Disc

Stem


A Nickel Aluminium Bronze ASTM B148 C95800 Nickel Aluminium Bronze ASTM B148 C95800 Nickel Aluminium Bronze ASTM B150 C63200
B Nickel Aluminium Bronze ASTM B148 C95800 Monel® Alloy 400 Monel® Alloy 400 / Alloy K500
D Bronze ASTM B62 Nickel Aluminium Bronze ASTM B148 C95800 Nickel Aluminium Bronze ASTM B150 C63200
E Bronze ASTM B62 Monel® Alloy 400 Monel® Alloy 400 / Alloy K500
G Bronze ASTM B61 Nickel Aluminium Bronze ASTM B148 C95800 Nickel Aluminium Bronze ASTM B150 C63200
H Bronze ASTM B61 Monel® Alloy 400 Monel® Alloy 400 / Alloy K500

Specfication 2

CODE BODY / BONNET BALL STEM
A Nickel Aluminium Bronze Nickel Aluminium Bronze Nickel Aluminium Bronze
B Nickel Aluminium Bronze Alloy 400 / Alloy K500 Alloy 400 / Alloy K500
C Bronze ASTM B62 Bronze ASTM B62 Nickel Aluminium Bronze
D Bronze ASTM B62 Nickel Aluminium Bronze Nickel Aluminium Bronze
E Bronze ASTM B62 Alloy 400 / Alloy K500 Alloy 400 / Alloy K500
F Bronze ASTM B61 Bronze ASTM B61 Nickel Aluminium Bronze
G Bronze ASTM B61 Nickel Aluminium Bronze Nickel Aluminium Bronze
H Bronze ASTM B61 Alloy 400 / Alloy K500 Alloy 400 / Alloy K500
J Phosphor Bronze Phosphor Bronze Phosphor Bronze
K Alloy 400 Alloy 400 / Alloy K500 Alloy 400 / Alloy K500
L Titanium Titanium Titanium
M Alloy 20 Alloy 20 Alloy 20
N Alloy 625 Alloy 625 Alloy 625
P 6Mo Stainless Steel 6Mo Stainless Steel 6Mo Stainless Steel
Q Duplex Stainless Steel Duplex Stainless Steel Duplex Stainless Steel
R Nickel Moly Alloy B&C Nickel Moly Alloy B&C Nickel Moly Alloy B&C
T Alloy 825 Alloy 825 Alloy 825
Z Zirconium Zirconium Zirconium

Should not be used in polluted / H2S containing seawater (in common with 316 Stainless)
