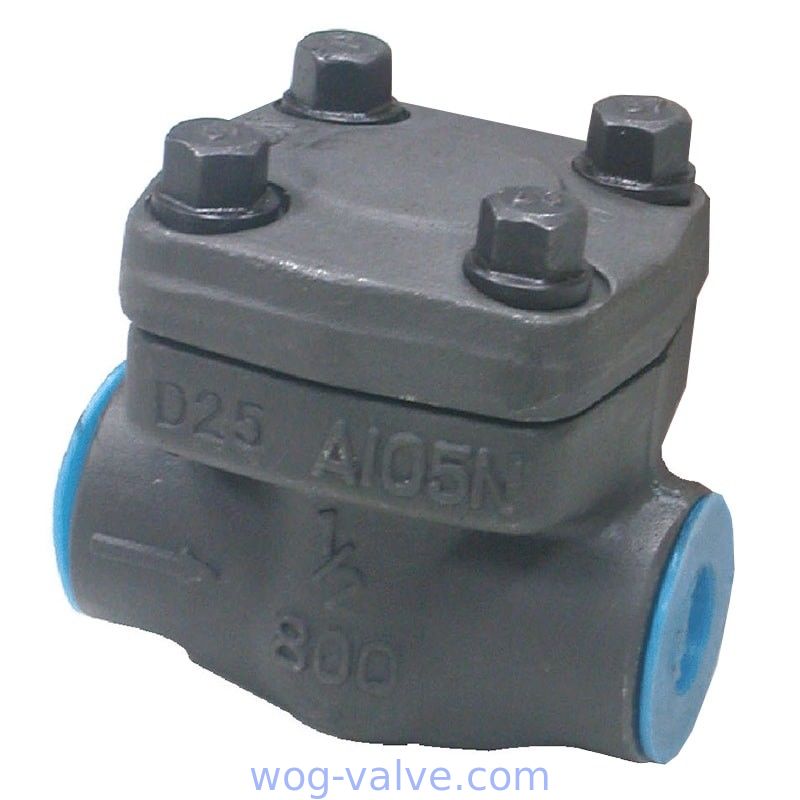

Class 800 Forged Lift Check Valve,a105n,f11,Trim no.5#,NPT Threaded,SW,API602
Detailed Product Description
MATERIAL:
F304,F316,F11,LF2,A105N,etc...
END TYPE:
FLANGE,THREAD NPT,SW,BW
PRESSURE:
150LB,300LB,600LB,800LB,900LB,1500LB,2500LB
High Light:
flanged swing
- Model Number:
- CX-FCK-16
- Minimum Order Quantity:
- 1PC
- Prices:
- Negotiable
- Packaging Details:
- wooden case
- Delivery Time:
- 7-30 work days
- Payment Terms:
- L/C, D/A, D/P, T/T, Western Union, MoneyGram
- Supply Ability:
- 10000PCS/Mouth
- Place of Origin:
- WENZHOU,CHINA
- Certification:
- API,ISO,CE
Detailed Product Description
| MATERIAL: | F304,F316,F11,LF2,A105N,etc... | END TYPE: | FLANGE,THREAD NPT,SW,BW |
|---|---|---|---|
| PRESSURE: | 150LB,300LB,600LB,800LB,900LB,1500LB,2500LB | ||
| High Light: | flanged swing check valve , pressure seal check valve | ||
API 598 API 602 Forged Steel Valve Welded bonnet Check Valve B1.20.1 B16.11 B16.25

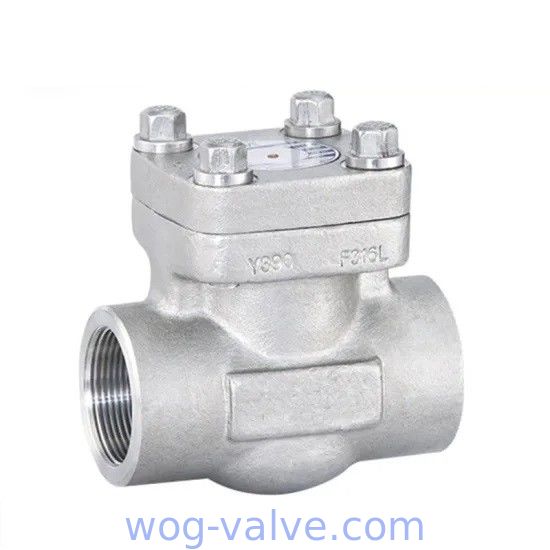

Forged Stainless Steel Check Valve - Threaded

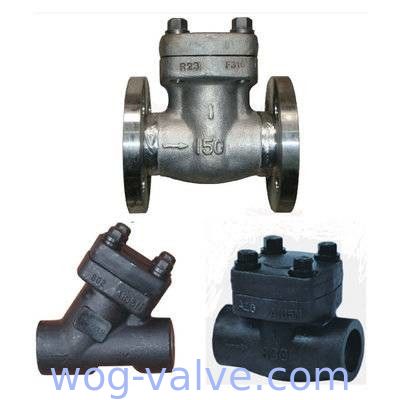

Forged Steel Check Valves: API 602, Swing, Lift Check, Bolted Bonnet, Pressure Seal, Bolted Cover, Socket Welded Ends, Class 150 - 2500, 1/2 - 2 Inch
• Forged Stainless Steel Check Valve
• Class 800
• ASTM A182/316L
• Maximum Pressure 1975 PSI
• Maximum Temperature 850
• Bolted Bonnet
• API 602 / API 598
• NACE MR0175
• Sizes 1/2” -2”
Material Specifications
| No. | Part | Material Carbon | Material Stainless |
|---|---|---|---|
| 1 | Body | A105 | F316L |
| 2 | Seat | INT | INT |
| 3 | Disc | 420 | F316L |
| 4 | Spring | SS304 | SS316 |
| 5 | Gasket | SS304 Flexible Graphite | SS16 Flexible Graphite |
| 6 | Cover | A105 | F316L |
| 7 | Name Plate | AL | AL |
| 8 | Bolt | B7 | B8M |
