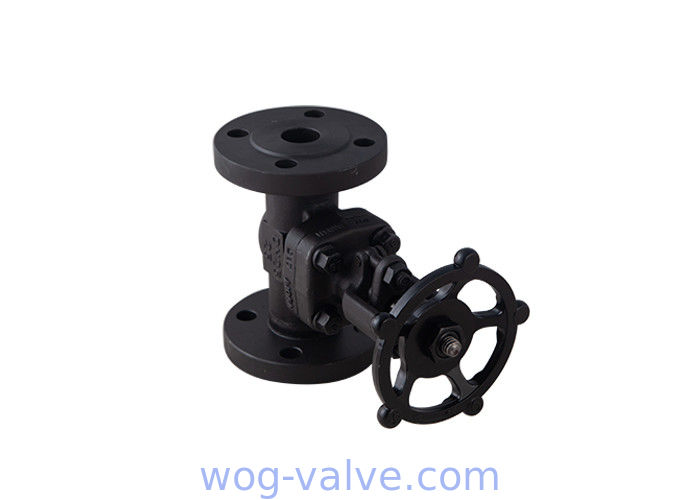

DN20 RF Flanged End Gate Valve Class 150 Intergral Type API602
- Model Number:
- CX-FGTV-02
- Minimum Order Quantity:
- 1PC
- Prices:
- Negotiable
- Packaging Details:
- Plywood packing.
- Delivery Time:
- 10-30days
- Payment Terms:
- L/C, D/A, D/P, T/T, Western Union, MoneyGram
- Supply Ability:
- 5000PCS per month
- Place of Origin:
- WENZHOU,CHINA
- Certification:
- API,ISO,CE
Detailed Product Description
| Type: | Gate Valve | Material: | ASTM A105/8# Trim |
|---|---|---|---|
| Size: | 3/4 Inch (DN20) | Pressure: | CL150/300,JIS10K,JIS20K |
| Ends: | RF Flanged | Wedge: | ANSI 410+STL |
| Standard: | ASME B16.5 | Operation: | Handwheel |
| High Light: | cryogenic gate valve , welded gate valve | ||
ASTM A105N flanged end Gate Valve, DN20, Class 150, RF, Intergral type,API602
Specification
Valve Material : ASTM A105N,A182 F304/F316/F11/F22/F304L/F316L/F51/F53,etc...
Valve Rating : PN10,PN16,PN25,PN40,PN64.Class150 Class300 Class600 Class900 Class1500 Class2500
Port Size : Standard Port / Full Port
Size Range : 1/2" - 2"
End Connections : Flanged,Threaded(NPT,BSPT,DIN), Socket Weld,Butt-Weld
Working Temperature : (A105) -20°F ~ 800°F; (S.S.) -20°F ~ 950°F
Service Application : Hydraulic, Steam, Chemical, Oil/ Gas, Power, Petrochemical, Marine, Mining, Construction.
Technical parameters and characteristics
| Products | API602 Forged steel gate valve |
| Nominal diameter | 1/2” ～ 2” |
| Design temp. | -196℃ ～ 593℃ |
| Design pressure | Class 150 ～ 2500 |
| Material | Forged carbon steel, SS, ally steel, duplex SS, nickel based alloy |
| Design standard | API 602, BS5352 |
| Face to face | Manufacture standard, ASME B16.10 |
| Connection end | NPT, SW, BW, RF, RTJ |
| Test standard | API 598, ISO 5208 |
| Operation | Hand wheel, electric |
| Application | Power station, petroleum, tap water engineering, chemical engineering, |
| Function 1 | Bolted bonnet, welded bonnet, pressure seal bonnet |
| Function 2 | solid wedge |
| Function 3 | Full bore, reduce bore |
| Function 4 | Integral flanged ends, welded on flanged ends |
Features
Bolted Bonnet, OS&Y Type
Optional: Weld Bonnet
Trim: API600 trim no. upon customer's requirement
Manufacture and Design : API602 / ANSI B16.34
Hydrostatic Test : Shell 3000 PSI / Seat 2200 PSI
Air Test : 80 - 100 PSI
A compact but extremely sturdy design for high pressure-temperature service
Inspection and Test: API 598
Safety/Quality Approvals
ISO 9001; PED 2014/68/EU
