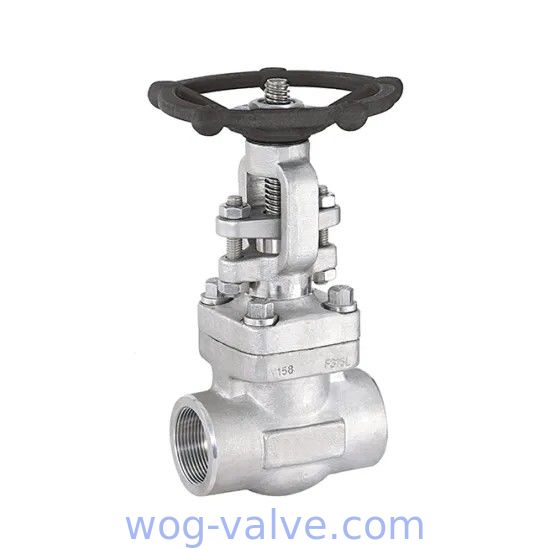

SW BW NPT Forged Steel Gate Valve A105N F11 F304 F316L 3/4IN Oem Service

Detailed Product Description Name: Forged Alloy Steel Gate Valve Bonnet Material: ASTM A182 F11 Body Material: ASTM A182 F11 Stem: SS410 Size: 3/4 Inch (DN20) Pressure: 800 LB
Model Number:
CX-FGTV-13
Minimum Order Quantity:
1PC
Prices:
Negotiable
Packaging Details:
Plywood Case
Delivery Time:
7-30 work days
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
1000PCS/Mouth
Place of Origin:
WENZHOU,CHINA
Certification:
API,ISO,CE

Detailed Product Description

Name: Forged Alloy Steel Gate Valve Bonnet Material: ASTM A182 F11
Body Material: ASTM A182 F11 Stem: SS410
Size: 3/4 Inch (DN20) Pressure: 800 LB (PN150)
Standard: API 602 Ends: SW,BW,NPT Threaded,Flanged
High Light: socked weld gate valve ,  welded gate valve

API602 Forged Steel Gate Valve,A105N,F11,F304,F316L,3/4IN, API 602, SW,BW,NPT,class 800,class1500

Name: Forged Alloy Steel Gate Valve.
Material: Body & Bonnet: ASTM A182 F11.
Stem: SS410.
Size: 3/4 Inch (DN20).
Pressure: 800 LB
Standard: API 602.
Ends: SW,BW,NPT Thread.

Specification

Valve Material : ASTM A105N,A182 F304/F316/F11/F22/F304L/F316L/F51/F53,etc...
Valve Rating : PN10,PN16,PN25,PN40,PN64.Class150 Class300 Class600 Class900 Class1500 Class2500
Port Size : Standard Port / Full Port
Size Range : 1/2" - 2"
End Connections : Flanged,Threaded(NPT,BSPT,DIN), Socket Weld,Butt-Weld
Working Temperature : (A105) -20°F ~ 800°F; (S.S.) -20°F ~ 950°F
Service Application : Hydraulic, Steam, Chemical, Oil/ Gas, Power, Petrochemical, Marine, Mining, Construction.

Technical parameters and characteristics

Products API602 Forged steel gate valve
Nominal diameter 1/2” ~ 2”
Design temp. -196℃ ~ 593℃
Design pressure Class 150 ~ 2500
Material Forged carbon steel, SS, ally steel, duplex SS, nickel based alloy
Design standard API 602, BS5352
Face to face Manufacture standard, ASME B16.10
Connection end NPT, SW, BW, RF, RTJ
Test standard API 598, ISO 5208
Operation Hand wheel, electric
Application Power station, petroleum, tap water engineering, chemical engineering,
Function 1 Bolted bonnet, welded bonnet, pressure seal bonnet
Function 2 solid wedge
Function 3 Full bore, reduce bore
Function 4 Integral flanged ends, welded on flanged ends

Features

Bolted Bonnet, OS&Y Type
Optional: Weld Bonnet
Trim: API600 trim no. upon customer's requirement
Manufacture and Design : API602 / ANSI B16.34
Hydrostatic Test : Shell 3000 PSI / Seat 2200 PSI
Air Test : 80 - 100 PSI
A compact but extremely sturdy design for high pressure-temperature service
Inspection and Test: API 598

Safety/Quality Approvals

ISO 9001; PED 2014/68/EU
