2 Pieces 12 Inch Ball Valve Gear Operator A216WCB Body 150LB ISO 9001 Certification

Detailed Product Description Body Material: Stainless Steel Power: Worm Gear Pressure: PN16,PN40,150LB/300LB Connection: Flange Structure: Trunnion Ball Valve Material: Stainle
Model Number:
CX-2PC-CBV-011
Minimum Order Quantity:
1PC
Prices:
Negotiable
Packaging Details:
plywood case
Delivery Time:
depends on the qty of order
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
600pcs per month
Place of Origin:
WENZHOU,CHINA
Certification:
API,ISO,CE

Detailed Product Description

Body Material: Stainless Steel Power: Worm Gear
Pressure: PN16,PN40,150LB/300LB Connection: Flange
Structure: Trunnion Ball Valve Material: Stainless Steel
High Light: reducer port ball valve ,  trunnion ball valve

2PC Body,Full Port,Casting Trunnion Ball Valves,A216WCB Body,150LB,12inch, Gear Operator

Specifications

  • Available in sizes 2 " - 56"
  • Available in PN16~pn420;ANSI 150LB~ANSI 2500LB
  • Superior flow with unique contoured ball design
  • Full port
  • Available with Pneumatic, Electric, Gear or Lever Actuation
  • Industries: Oil & Gas, Marine, Refining, Geothermal, Power, Chemical, Pulp & Paper, Cryogenic, Mining/Steel
  • Manufactured under a certified ISO 9001 quality system

Overview

Trunnion Mounted Ball: The trunnion mounted ball valve is a quarter turn valve which uses a rotating ball with a hole through it, which can be aligned with the flow path (open position) allowing flow and blocks flow when the ball is rotated by 90 degrees. A trunnion mounted ball has mechanical anchoring at the top and bottom, which is suitable for larger and higher pressure valves. Ball valves are used for on/off and throttling services.


Advantage

Trunnion mounted ball valve is an economical and high-performance quarter-turn valve. The quarter-turn operation is fast and reliable which makes this valve applicable to quick on-off operation and tight seal. This ball valve is widely used in pulp paper refinery, mining, chemical fiber, sewage and water treatment, sugar refining industry.
Body:
Separate body design, various materials are available.
Ball:
The ball is trunnion mounted, which prevent seat damage and reduce seat ware dramatically comparing with floating ball valve.
The ball is precisely machined and mirror finished for bubble-tight shutoff and less operating torque.
Full bore design minimizes the flow resistance and achieve better valve performance.
Seat:
With seats on both sides,the trunnion ball valve can handle flow in either direction with 0 leakage.
Seat is spring preloaded, which ensures self sealing adjustment when flow pressure changes to achieve 0 leakage.

Application

The trunnion ball valve is used for cutting or connecting the medium in various pipelines of class150-class2500 and pn16-pn320. It can be suitable for various media such as water, steam, oil, liquefied gas, natural gas, coal gas, nitric acid, acetic acid, oxidizing media, urea and etc. It is widely used in such industries as chemical industry, petroleum, natural gas, metallurgy and etc. The driving modes of the trunnion ball valve include worm and worm gear driving, manual driving, pneumatic driving and electric driving. The trunnion ball valves generally adopt flange connection, and butt-welding connection is also adopted. The seat can be soft seal seat or metal hard seal seat.

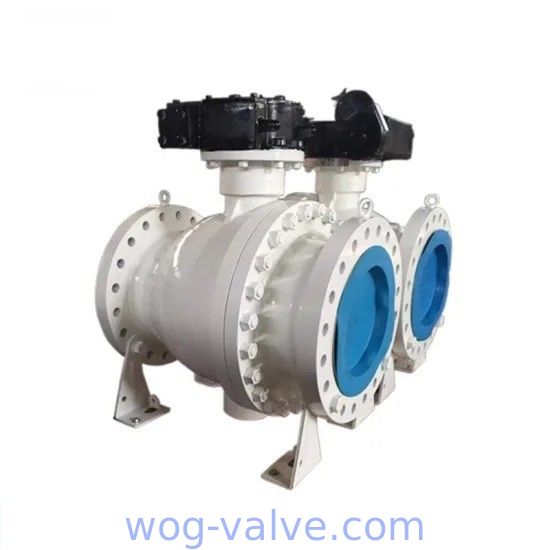

2 Pieces 12 Inch  Ball Valve  Gear Operator A216WCB Body 150LB ISO 9001 Certification 0
