3 pieces Reduce Ball Valve Forged steel Flanged RTJ CL2500 API 6D

Detailed Product Description Type: Trunnion Mounted Ball Valve Body: Reduced Ball Valve CL2500 Flanged RTJ Size: 6" X 4" Pressure: Class 2500 Ends: Flanged RTJ Standard: API 6D
Model Number:
CX-3PC-TBV-07
Minimum Order Quantity:
1PC
Prices:
Negotiable
Packaging Details:
Plywood case
Delivery Time:
depends on the qty of order
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
300pcs per month
Place of Origin:
WENZHOU,CHINA
Certification:
API,ISO,CE

Detailed Product Description

Type: Trunnion Mounted Ball Valve Body: Reduced Ball Valve CL2500 Flanged RTJ
Size: 6" X 4" Pressure: Class 2500
Ends: Flanged RTJ Standard: API 6D
Material: ASTM A105N, F304, F316, F316L, F304L, F51,B148,B150,B62,etc... Port: Ningbo, China
High Light: reducer port ball valve ,  trunnion ball valve

Trunnion Mounted Ball Valve

3PC Forged steel Reduce Bore Trunnion Mounted Ball Valve, CL2500, API 6D, Flanged RTJ

1.General Design Features


  • Valve Range: Size 2-48Inch (DN50-DN1200), Rating Class 150-2500Lb (PN16-PN420)
  • Valve Applications: Oil Industry, Chemical, Power Station, Refinery, Paper Making, Aviation, Other
  • Design Standard: API6D, ASME B16.34, MSS-SP-72, API 608, ISO17292, DIN, Other
  • Face-to-Face Standard: ASME B16.10, API6D, Other
  • Connection Standard: Flange per ASME B16.5/ASME B16.47(NPS≥26”), BW per ASME B16.25, Other
  • Testing Standard: API 598, API6D, Other
  • Fire-Safe Design: API 607/6FA
  • Type of Bore: Full Bore, Reduced Bore, Other
  • Valve Material: Cast Steel, Forged Steel
  • Valve Operation: Lever, Gear Worm, Electric, Pneumatic, Other
  • Connection Type: FF, RF, RTJ, BW
  • Ball Type: Trunnion Mounted Ball
  • Construction Type: Split Body(2-pcs,3-pcs), Cryogenic
  • Stem Type: Extended
  • Seat Type: Soft Sealing, Metal-to-Metal Sealing
  • Body-Bonnet Connection Type: Bolted Bonnet, Extended Bonnet
  • Other Features:Fire Safe,Anti-Static,Anti-Blowout,Double Block and Bleed,NACE,Locking Device,Lugs and Support,Other


2.Main Material Applied for Trunnion Mounted Ball Valve

MAIN MATERIAL LIST
Body/Bonnet: Casting Conduit: A216-WCB/WCC,A352-LCB/LCC,A351-CF8/CF8M/CF3/CF3M/CF8C/CN7M,A890 4A/5A/6A,Other
Forging Conduit: A105,A694-F52,A182-LF2,A182-F304/F304L/F316/F316L/F321,ALLOY-20,F51/F53/F55,Other
Ball A105+ENP,F52+ENP,F6a,LF2+ENP,SS304,SS304L,SS316,SS316L,SS321,ALLOY-20,F51,F53,F55,Other
Stem 1045+ENP,F6a,SS4140+ENP,SS304,SS304L,SS316,SS316L,SS321,ALLOY-20,SS17-4PH,F51,F53,F55,Other
Seat Ring
(For Metal Seal Type)
A105+ENP,LF2+ENP,F6a,SS304,SS304L,SS316,SS316L,SS321,ALLOY-20,F51,F53,F55,Other
Seat Insert PTFE, RPTFE, NYLON, MOLON, DEVLON, PEEK, PCTFE, Other
Gasket SS304+Graphite, SS316+Graphite,SS316L+Graphite,Other
Packing Flexible Graphite, PTFE, Other
Bolts/Nuts A193 Gr.B7(M)/A194 Gr.2H(M), A320 Gr.L7(M)/ A194 Gr.7(M) or Gr.4(M),A193 Gr.B8/ A194 Gr.8,
A193 Gr.B8M/A194 Gr.8M,A453 Gr.660,Other
Seal Viton, NBR, Graphite
Note *ENP Means Electroless Nickel Plating.
*For More Detailed of our valves,pls let us know freely,

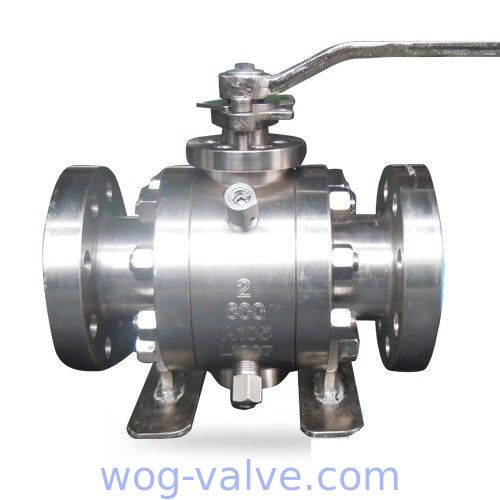

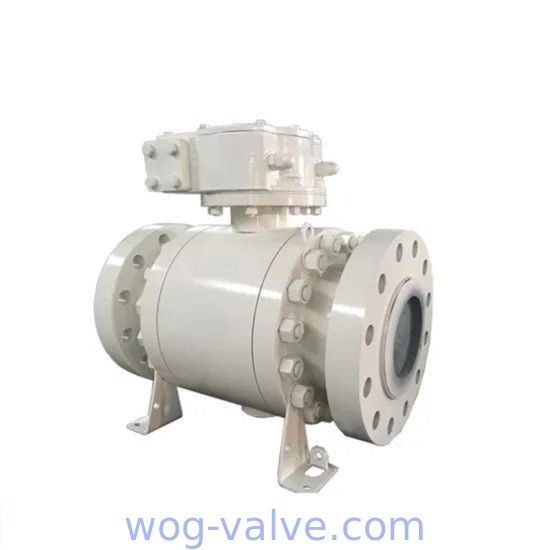

3 pieces Reduce Ball Valve Forged steel Flanged RTJ CL2500 API 6D 03 pieces Reduce Ball Valve Forged steel Flanged RTJ CL2500 API 6D 1
