API594 Standard Wafer Disc Check Valve Metal Seat Soft Seat Check Valve
Detailed Product Description
Size:
NPS 2"~40"
Pressure Rating:
Class 150~2500
Material:
WCB, LCB,WC6, WC9, C12, C5,CF8, CF8M, CF3, CF3M Etc
Standard:
API 594, BS 1868, ASME B16.34
Fa
- Model Number:
- CX-WCK-033
- Minimum Order Quantity:
- 1PC
- Prices:
- Negotiable
- Packaging Details:
- Plywood Case
- Delivery Time:
- 30~35 work days
- Payment Terms:
- L/C, D/A, D/P, T/T, Western Union, MoneyGram
- Supply Ability:
- 100pcs/week
- Place of Origin:
- WENZHOU,CHINA
- Certification:
- API,ISO,CE
Detailed Product Description
| Size: | NPS 2"~40" | Pressure Rating: | Class 150~2500 |
|---|---|---|---|
| Material: | WCB, LCB,WC6, WC9, C12, C5,CF8, CF8M, CF3, CF3M Etc | Standard: | API 594, BS 1868, ASME B16.34 |
| Face To Face: | ASME B16.10, API 6D BSEN558 | End Connection: | ASME B16.5, ASME B16.47, ASME B1.20.1 , ASME B16.11,DIN 2453-2551, ASME B16.25 |
| Test And Inspection: | ISO 5208, API600, API598, BS 6755 | Operation Method: | Swing Type, Lifting Type |
| High Light: | disc type check valve , single plate check valve | ||

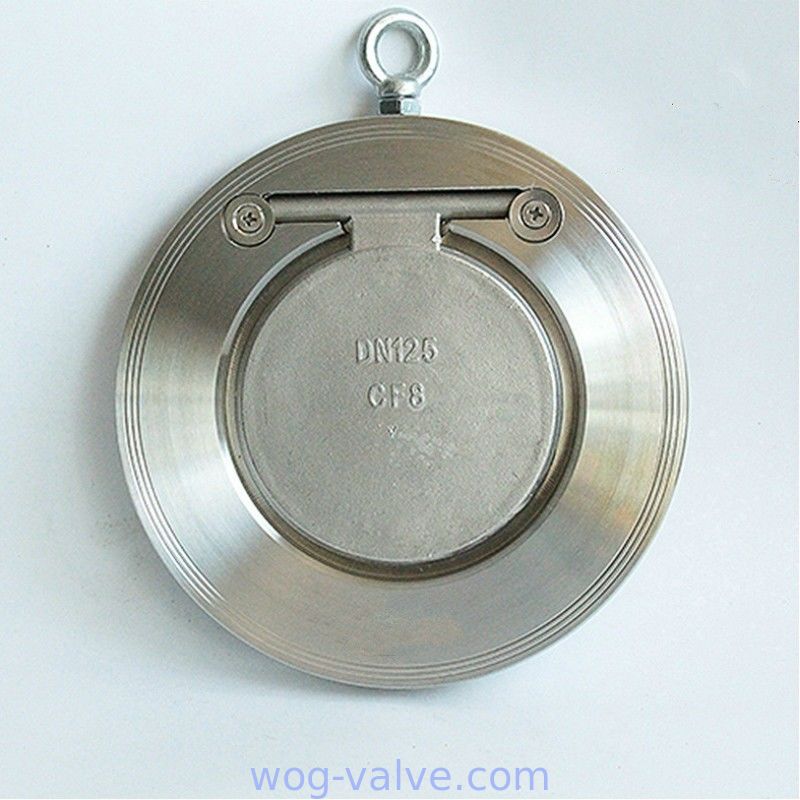

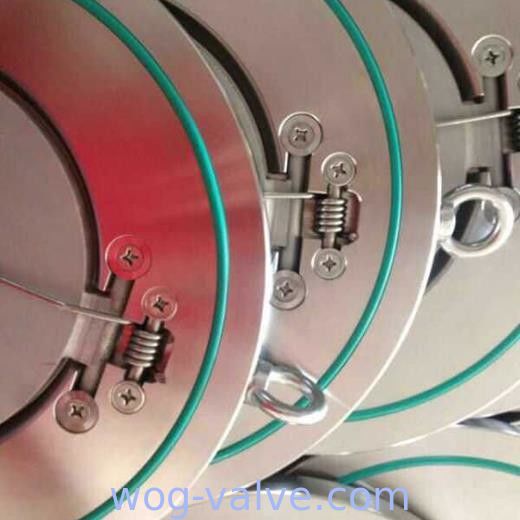

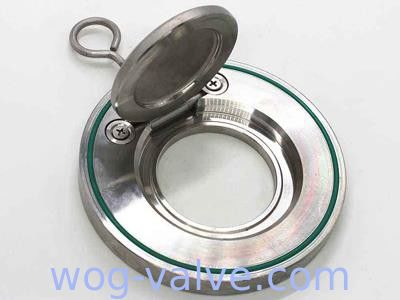

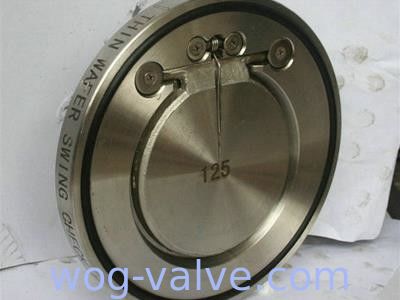

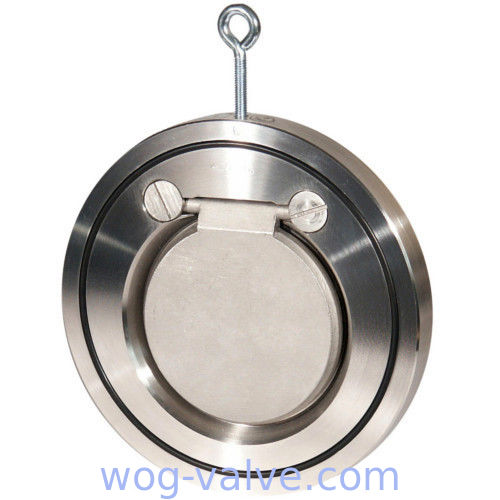

Single plate wafer cast check valve 2"-40" CL150-1500 API 594 design
| Size: | NPS 2"~40" |
| Pressure Rating: | Class 150~1500 |
| Material: | WCB, WCA, WCC,WC6, WC9, C5,C12, LCB, LCC, CF8, CF8M, CF3, CF3M, CN7M, CF8C |
| Design & Manufacturing Standard: | API 594, API 6D, ASME B16.34 |
| Face to Face: | API 594, API 6D |
| Flanged Dimenson: | ASME B16.5 ,ASME B16.47 |
| Test and Inspection: | API 6D ,ISO 5208 |
Applicable Standards:
● STEEL CHECK VALVES, API 594/API6D
● STEEL CHECK VALVES,ISO14313
● STEEL VALVES,ASME B16.34
● FACE TO FACE, ASME B16.10
● END FLANGES,ASME B16.5
● INSPECTION AND TEST, API 598/API 6D
Design descriptions:
● ONE PIECE BODY
● BUTTERFLY SWING TYPE
● DUAL-PLATE DISC,LONG-PATTERN
● RENEWABLE SPLIT DISC
● HORIZONTAL OR VERTICAL SERVICE
● WAFER ENDS
● AVAILABLE WITH FLANGED ENDS
