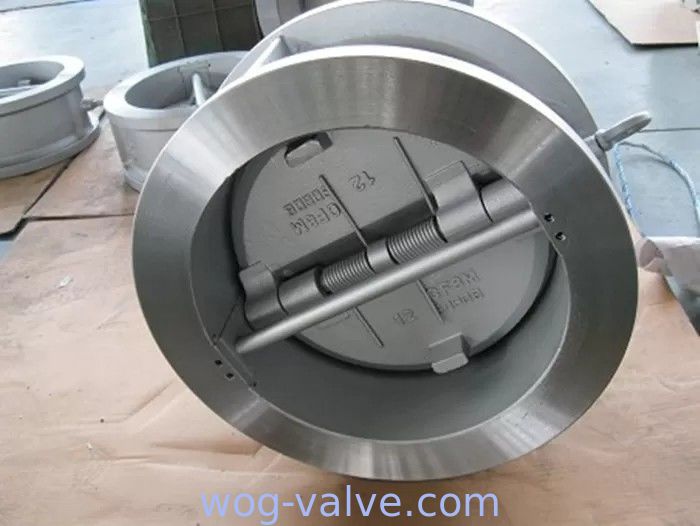

Dual Plate wafer Check Valve,CF8M,316 Body Material,Metal Seat,class 150LB,12inch
Detailed Product Description
Type:
Dual Plate Check Valve
Material:
Body & Dis ASTM A351 CF8M
Spring:
INCONEL X-750
Size:
DN300 (12 Inch)
Pressure:
150LB
Standard:
API 594
- Model Number:
- CX-WCK-09
- Minimum Order Quantity:
- 1PC
- Prices:
- Negotiable
- Packaging Details:
- PlyWooden case packing or as required
- Delivery Time:
- 7~60 working days
- Payment Terms:
- L/C, D/A, D/P, T/T, Western Union, MoneyGram
- Supply Ability:
- 1000PCS/Mouth
- Place of Origin:
- WENZHOU,CHINA
- Certification:
- API,ISO,CE
Detailed Product Description
| Type: | Dual Plate Check Valve | Material: | Body & Dis ASTM A351 CF8M |
|---|---|---|---|
| Spring: | INCONEL X-750 | Size: | DN300 (12 Inch) |
| Pressure: | 150LB | Standard: | API 594 |
| High Light: | double disc check valve , disc type check valve | ||
Dual Plate wafer Check Valve,CF8M,316 Body Material,Metal Seat,class 150LB,12inch
1:General Design Features
- Valve Range: Size 2-60Inch (DN50-DN1500), Rating Class 150-2500Lb (PN16-PN420)
- Valve Applications: Oil Industry, Chemical, Power Station, Refinery, Water Treatment, Other
- Design Standard: API 594
- Face-to-Face Standard: API 594
- Connection Standard: Flange per ASME B16.5/ASME B16.47(NPS≥26”), BW per ASME B16.25, Other
- Testing Standard: API 598
- Type of Bore: Full Bore, Other
- Valve Material: Cast Steel, Forged Steel,Duplex Steel,Nickel Aluminum Bronze B148 C95800
- Connection Type: FF, RF, RTJ, BW,Wafer,Lug
- Disc Type: Dual Plate
- Seat Type: Integral Seat
- Other Features: Hard Facing, Bypass Arrangement, Drain and Vent Connection, Outside Dashpot Design, Other
2:Main Material Applied for Dual Plate Check Valve
| MAIN MATERIAL LIST | |
| Body/Bonnet: | A216-WCB/WCC,A352-LCB/LCC,A217-WC6/WC9/C5/C12,A351-CF8/CF8M/CF3/CF3M/CF8C/CN7M,A890 4A/5A/6A/Nickel Aluminum Bronze |
| Disc | A216-WCB/WCC,A352-LCB/LCC,A217-WC6/WC9/C5/C12,A351-CF8/CF8M/CF3/CF3M/CF8C/CN7M,A890 4A/5A/6A,A217-CA15,Nickel Aluminum Bronze B148 C95800,Other |
| Pin | F6a,SS304,SS304L,SS316,SS316L,SS321,ALLOY-20,SS17-4PH,F51,F53,F55,Other |
| Seal Surface | 13CR/13CR,13CR/STL,STL/STL,SS304/SS304,SS316/SS316,SS316/STL,ALLOY-20/ALLOY-20,F51/F51,Other |
| Spring | SS316,Inconel X-750, Other |
| Note | *For More Detailed of our valves,pls kindly let us know freely. |
