Dual Plate Wafer Type Check Valve Full Lug Forged type Inconel X-750 Spring Loaded

Detailed Product Description Media: Water,Oil&Gas Temperature: Normal Temperature Material: ASTM A105N, F304, F316, F316L, F304L, F51,B148,B150,B62,etc... Connection Form: Flange,W
Model Number:
CX-WCK-111
Minimum Order Quantity:
1PC
Prices:
Negotiable
Packaging Details:
Plywood Case
Delivery Time:
7-45 days
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
10000PCS/Mouth
Place of Origin:
WENZHOU,CHINA
Certification:
API,ISO,CE

Detailed Product Description

Media: Water,Oil&Gas Temperature: Normal Temperature
Material: ASTM A105N, F304, F316, F316L, F304L, F51,B148,B150,B62,etc... Connection Form: Flange,Wafer
Structure: Dual Type Wafer Swing Check Valve Pressure: 150LB~2500LB,PN16~PN420
Standard: ANSI,JIS,DIN,etc... Application: Industrial Usage, Water Industrial Usage, Household Usage
Body: WCB,SS304,SS316,1.408,CF8,CF8M Disc,Plate: Single Disc/Single Plate, Dual Disc/Dual Plate
Seat: Metal Seat,Soft Seat
High Light: disc type check valve ,  single plate check valve

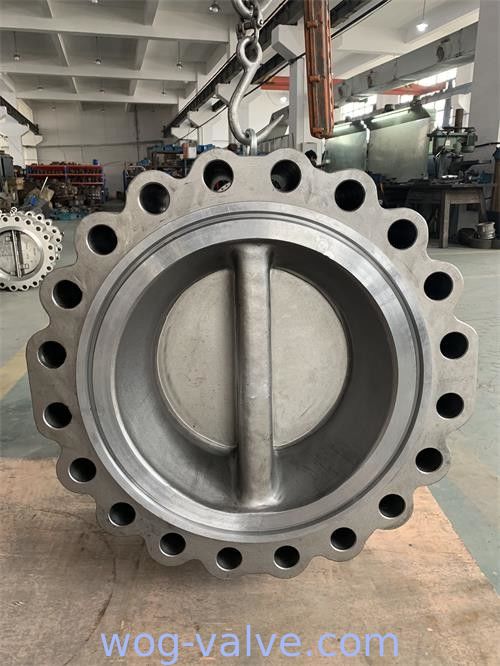

API594 Full Lug Forged type Dual Plate Wafer Check Valve,A105 Body,Inconel X-750 Spring Loaded,Retainerless design


CX Dual plate check valve has retainer and retainer-less type design. Dual plate check valves have the advantage of zero leakage toward outside, cost saving. It can be installed in any line orientation, superior seal performance. Valves are designed in accordance to API 594 and have dual plate or single plate design and pin can be retainer-less type.

Product Range
-Valve size:
2" ~ 40" (DN50-DN1000)
-Pressure:
ANSI Class 150~2500(PN16-PN420)
-Temperature:
-196ºC~ 500ºC
-Body Materials:
Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel
-Trim (Disc/Stem):
Carbon Steel, Stainless Steel, Duplex Steel, Alloy Steel

Technical Specifications
-Design: ASME 16.34/API 594/API 6D
-Face to Face: ASME B16.10
-End Flange: ASME B16.5, ASME B16.47
-BW End: ASME B16.25
-Test: API 598/ API 6D/ BS 6755
-Special: NACE MR-01-75

Design Features
-Dual plate or single plate.
-Spring loaded disc.
-Resilient or metal seated.
- Retainer or Retainer Less Design
- Round, Full Lug or Double Flange
-Light-weight & compact design.
-Optional plug disc.

SPRING SELECTION GUIDE
-Standard Spring Suitable for the line pressure of 0.298MPa through 0.89MPa without any pressure loss and the upward flow direction of vertical installation.
-Low Coil Spring Ideal for gas with the line pressure of 0.1MPa and under.
-High Coil Spring Suitable for the line pressure of 0.88MPa.

THE SEAT DESIGN OF DUAL PLATE CHECK VALVE
-No leak, no distortion seals Seat design can be furnished with the resilient seal materials that provide tight seals without leakage and metal seals with minimum leakage.

Advantage
-Face-to-face dimensions for Dual Plate Wafer Check Valves are about one fourth of a Swing Check Valve.
-Weight is as little as about 20% of the corresponding Swing Check Valve due to the compact design.
-Dual Plate Wafer Check Valves have a spring design to close valves more efficiently when the back flow occurs to reduce the water hammer.
-These valves have the lower pressure drop than Swing Check Valves because of little friction resistance.
-Dual Plate Wafer Check Valves are less expensive than Swing Check Valves because of the lightness and compact design. These valves are also easier and less expensive to install and maintain because of fewer piping supports and easy handling for installation.
-Because Dual Plate Wafer Check Valves are flangeless, they are installed between flanges.
-Normal installation method for horizontal flow is with the hinge pin in vertical position.
-Installation is available for both horizontal and vertical piping.


Application
Dual Plate Check Valves have been used successfully in following plants
- Oil & Gas;
- Petrol-chemical;
- Power Generation
- Refinery;
- Onshore and Offshore;
- Chemical Plant;
- Nuclear;
- Waste Incineration;
- Water System;
- LNG;
- Shipbuilding;
- Steel Industry;
- General industry;

Main Material Applied for Tilting/Single Plate/Axial/Piston Check Valves:


Body/Bonnet: A216-WCB/WCC,A352-LCB/LCC,A217-WC6/WC9/C5/C12,A351-CF8/CF8M/CF3/CF3M/CF8C/CN7M,A890 4A/5A/6A,Other
Disc: A216-WCB/WCC,A352-LCB/LCC,A217-WC6/WC9/C5/C12,A351-CF8/CF8M/CF3/CF3M/CF8C/CN7M,A890 4A/5A/6A,A217-CA15,Other
For Single/Piston Check Valve): SS304,SS304L,SS316,SS316L,SS321,ALLOY-20,F51,F53,F55,Other
Pin: F6a,SS304,SS304L,SS316,SS316L,SS321,ALLOY-20,SS17-4PH,F51,F53,F55,Other
Seat Ring(For Axial Check Valve): A105,LF2,F11,F22,F5,F9,F6a,SS304,SS304L,SS316,SS316L,SS321,ALLOY-20,F51,F53,F55Other
Seal Surface: 13CR/13CR,13CR/STL,STL/STL,SS304/SS304,SS316/SS316,SS316/STL,ALLOY-20/ALLOY-20,F51/F51,Other
Spring(For Single/Axial Check Valve): SS316,Inconel X-750,Other
Gasket(For Piston Check Valve): SS304+Graphite, SS316+Graphite,SS316L+Graphite,1008,SS304L,SS316L, Other
Bolts/Nuts(For Piston Check Valve): A193 Gr.B7(M)/A194 Gr.2H(M), A320 Gr.L7(M)/ A194 Gr.7(M) or Gr.4(M), A193 Gr.B16/ A194 Gr.7,A193 Gr.B8/ A194 Gr.8, A193 Gr.B8M/A194 Gr.8M,A453 Gr.660,Other
