Metal Seat Dual Plate Non Return Valve Cast Steel Body Wafer To PN16

Detailed Product Description Name: Duo Plate Wafer Check Valve Size: 2" To 60" Class: 150LB To 2,500LB Body Material: CF8,CF8M,WCB,CF3,CF3M,1.44408,SCS13,SCS14,etc.. Disc Material:
Model Number:
CX-WCK-31
Minimum Order Quantity:
1PC
Prices:
Negotiable
Packaging Details:
Plywood Case
Delivery Time:
30~60 work days
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
10000PCS/Mouth
Place of Origin:
WENZHOU,CHINA
Certification:
API,ISO,CE

Detailed Product Description

Name: Duo Plate Wafer Check Valve Size: 2" To 60"
Class: 150LB To 2,500LB Body Material: CF8,CF8M,WCB,CF3,CF3M,1.44408,SCS13,SCS14,etc..
Disc Material: CF8,CF8M,WCB,CF3,CF3M,1.44408,SCS13,SCS14,etc.. Shaft Material: SS410,SS304,SS316,etc..
Spring Material: SS304S,S316,etc.. Seat Material: EPDM,NBR,Metal To Metal
High Light: disc type check valvesingle plate check valve

Double Disc Duo Check Valve,Cast Steel Body,SS304,316 Disc,Metal Seat,Wafer to PN16,

1:General Design Features

  • Valve Range: Size 2-60Inch (DN50-DN1500), Rating Class 150-2500Lb (PN16-PN420)
  • Valve Applications: Oil Industry, Chemical, Power Station, Refinery, Water Treatment, Other
  • Design Standard: API 594
  • Face-to-Face Standard: API 594
  • Connection Standard: Flange per ASME B16.5/ASME B16.47(NPS≥26”), BW per ASME B16.25, Other
  • Testing Standard: API 598
  • Type of Bore: Full Bore, Other
  • Valve Material: Cast Steel, Forged Steel,Duplex Steel,Nickel Aluminum Bronze B148 C95800
  • Connection Type: FF, RF, RTJ, BW,Wafer,Lug
  • Disc Type: Dual Plate
  • Seat Type: Integral Seat
  • Other Features: Hard Facing, Bypass Arrangement, Drain and Vent Connection, Outside Dashpot Design, Other


2:Main Material Applied for Dual Plate Check Valve

MAIN MATERIAL LIST
Body/Bonnet: A216-WCB/WCC,A352-LCB/LCC,A217-WC6/WC9/C5/C12,A351-CF8/CF8M/CF3/CF3M/CF8C/CN7M,A890 4A/5A/6A/Nickel Aluminum Bronze
Disc A216-WCB/WCC,A352-LCB/LCC,A217-WC6/WC9/C5/C12,A351-CF8/CF8M/CF3/CF3M/CF8C/CN7M,A890 4A/5A/6A,A217-CA15,Nickel Aluminum Bronze B148 C95800,Other
Pin F6a,SS304,SS304L,SS316,SS316L,SS321,ALLOY-20,SS17-4PH,F51,F53,F55,Other
Seal Surface 13CR/13CR,13CR/STL,STL/STL,SS304/SS304,SS316/SS316,SS316/STL,ALLOY-20/ALLOY-20,F51/F51,Other
Spring SS316,Inconel X-750, Other
Note *For More Detailed of our valves,pls kindly let us know freely.

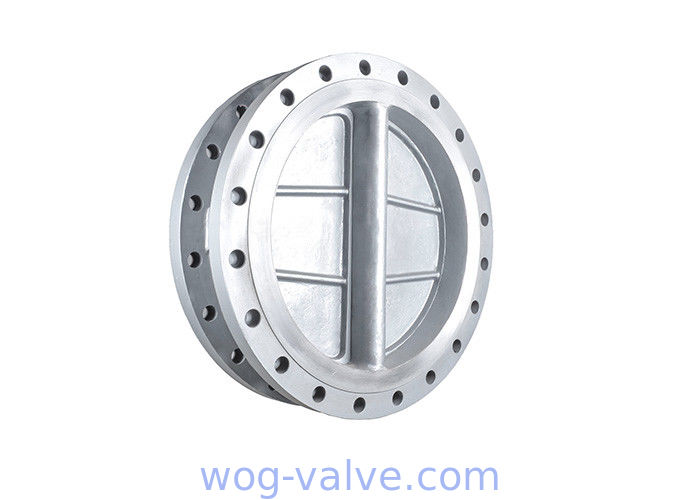

Built in Double-disc Wafer Swing Check Valve

We also spercial produce of Flange Ball Valve, Gate Valve, Globe Valve, Check Valve, Butterfly Valve & Y Strainer.Any inquiry for these valves,pls let us know freely by sales@cncxvalve.com

We will give you best price immediately,and meanwhile,we will supply better service with your other suppliers.Why not have a try.
