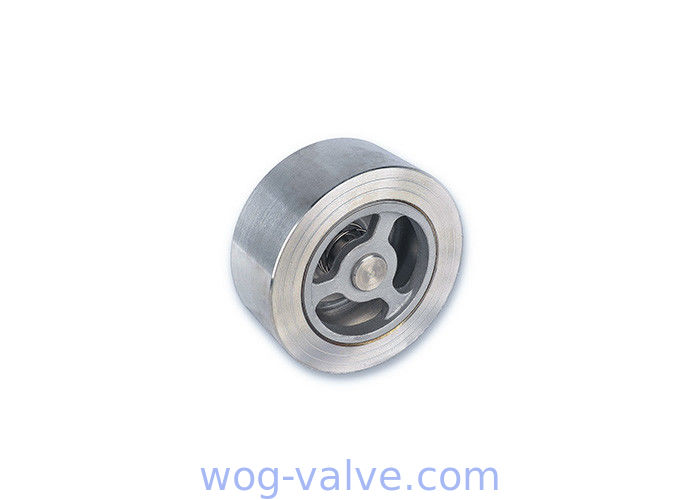

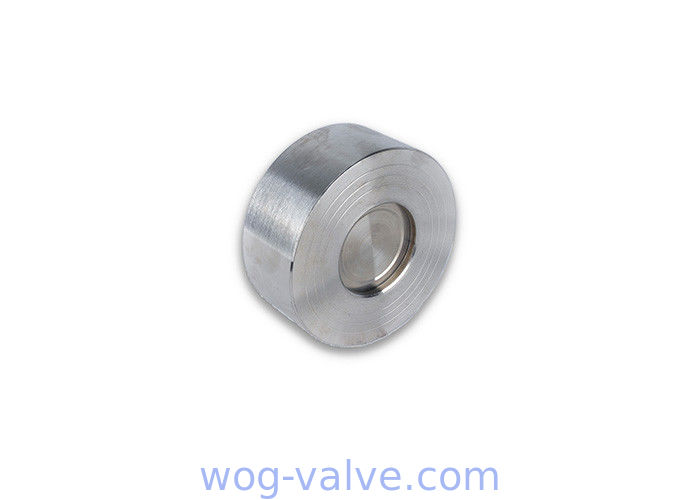

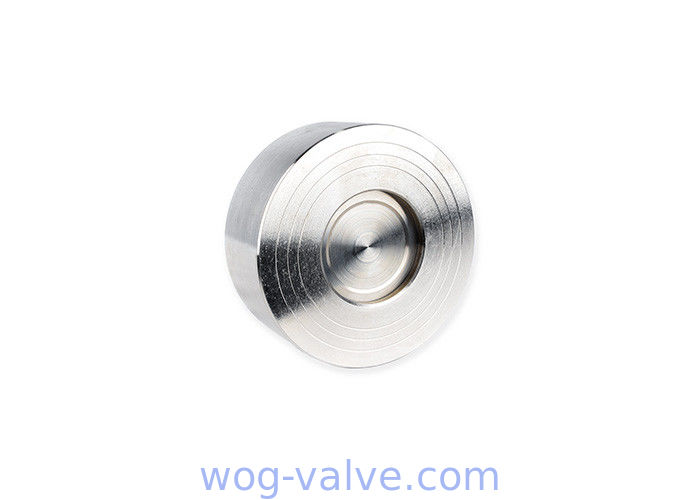

Stainless Steel Wafer Type Check Valve Single Disc Lift , Spring Loaded Check Valve PN16 PN40

Detailed Product Description Size: 1/2"-36Inch (DN15-DN900) Material: ASTM A105N, F304, F316, F316L, F304L, F51,B148,B150,B62,etc... Flow Direction: Unidirection Application: Industria
Model Number:
CX-WCK-44
Minimum Order Quantity:
1PC
Prices:
Negotiable
Packaging Details:
Plywood Case
Delivery Time:
7-45work days
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
1000PCS/Mouth
Place of Origin:
WENZHOU,CHINA
Certification:
API,ISO,CE

Detailed Product Description

Size: 1/2"-36Inch (DN15-DN900) Material: ASTM A105N, F304, F316, F316L, F304L, F51,B148,B150,B62,etc...
Flow Direction: Unidirection Application: Industrial Usage, Water Industrial Usage, Household Usage
Connection: Wafer Type Transport Package: Carton, PlyWooden Case
High Light: double disc check valve ,  disc type check valve

Stainless Steel Wafer Type Single Disc Lift ,spring loaded check Valve,PN16,PN40

1:General Design Features:

  • Valve Range: Size 1/2"-36Inch (DN15-DN900), Rating Class 150-2500Lb (PN16-PN420)
  • Valve Applications: Oil Industry, Chemical, Power Station, Refinery, Water Treatment, Other
  • Design Standard: ASME B16.34, Other
  • Face-to-Face Standard: ASME B16.34, Other
  • Connection Standard: Flange per ASME B16.5/ASME B16.47(NPS≥26”), BW per ASME B16.25, Other
  • Testing Standard: API 598
  • Type of Bore: Full Bore, Reduced Bore, Other
  • Valve Material: Cast Steel, Forged Steel
  • Connection Type: FF, RF, RTJ, BW, Wafer, Lug
  • Disc Type: Single Type, Swing Type, Axial Type, Piston Type, Other
  • Seat Type: Threaded Seat, Integral Seat, Other
  • Body-Bonnet Connection Type(For Piston Check Valve): Bolted Bonnet, Pressure Sealed Bonnet
  • Other Features: Hard Facing, Outside Dashpot Design, Other


2:Main Material Applied for Tilting/Single Plate/Axial/Piston Check Valves:

Body/Bonnet: A216-WCB/WCC,A352-LCB/LCC,A217-WC6/WC9/C5/C12,A351-CF8/CF8M/CF3/CF3M/CF8C/CN7M,A890 4A/5A/6A,Other
Disc: A216-WCB/WCC,A352-LCB/LCC,A217-WC6/WC9/C5/C12,A351-CF8/CF8M/CF3/CF3M/CF8C/CN7M,A890 4A/5A/6A,A217-CA15,Other
For Single/Piston Check Valve): SS304,SS304L,SS316,SS316L,SS321,ALLOY-20,F51,F53,F55,Other
Pin: F6a,SS304,SS304L,SS316,SS316L,SS321,ALLOY-20,SS17-4PH,F51,F53,F55,Other
Seat Ring(For Axial Check Valve): A105,LF2,F11,F22,F5,F9,F6a,SS304,SS304L,SS316,SS316L,SS321,ALLOY-20,F51,F53,F55Other
Seal Surface: 13CR/13CR,13CR/STL,STL/STL,SS304/SS304,SS316/SS316,SS316/STL,ALLOY-20/ALLOY-20,F51/F51,Other
Spring(For Single/Axial Check Valve): SS316,Inconel X-750,Other
Gasket(For Piston Check Valve): SS304+Graphite, SS316+Graphite,SS316L+Graphite,1008,SS304L,SS316L, Other
Bolts/Nuts(For Piston Check Valve): A193 Gr.B7(M)/A194 Gr.2H(M), A320 Gr.L7(M)/ A194 Gr.7(M) or Gr.4(M), A193 Gr.B16/ A194 Gr.7,A193 Gr.B8/ A194 Gr.8, A193 Gr.B8M/A194 Gr.8M,A453 Gr.660,Other
*For More Detailed of our products,pls let us know freely.
