1000PSI 3 Piece Stainless Steel Ball Valve Screwed End Full Bore Lever Ball Valve

Detailed Product Description

3PC Body stainless steel 316 Ball Valve Full Bore screwed end lever operated locking device

What is Stainless Steel 3 Piece Ball Valves?

Welcome to Visit CX Fluid Products MFG CO.,LTD.

Piece Ball Valves named according to Valve structure. For 3 Piece Stainless Steel Ball Valve is Three piece construction(One Body with Two Caps), and Ball Valve is connected with 4 or more bolts and nuts. Our Stainless Steel 3 Piece Ball Valve with Many different connections, such as Screwed Thread (BSPT,BSPP,NPT) Ball Valve, Butt-Welded(BW) Ball Valve,Socket-Welded(SW) Ball Valve,Clamp Ends Ball Valve ,Long Butt-Welded Ball Valve, Flange Ends Ball Valve etc.

Stainless Steel Ball Valve Socket Weld Description

1. Size: 1/4”-4”(DN8-DN100)

2. Max Pressure: 1000PSI(PN63)

3. End connection: Socket Welded(JIS B2316)/ANSIB16.11

4. Investment Casting Body

5. Blow-out proof Stem

6. Operation: Manual (Lock Lever Handle)

7. Suitable medium: WOG( Water,Oil,Gas) and some corrosive liquid.

8. Material: SS304(CF8,SUS304,1.4308),SS316(CF8M,SUS316,1.4408), SS304L,SS316L, A216 WCB etc.

9. OEM is acceptable and manufacture special requirements according to your drawings.

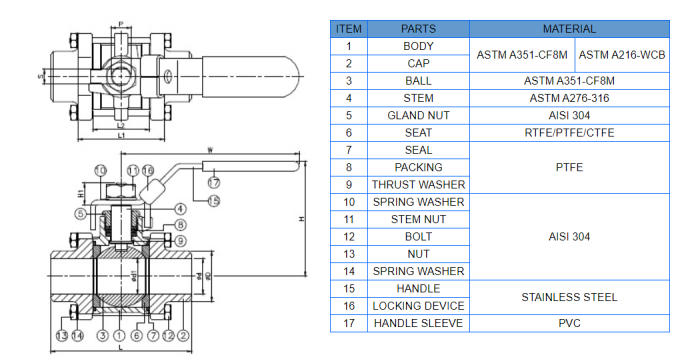

Stainless Steel Ball Valve Socket Weld Material List
