1PC Body Ball Valve Reducer bore Ball valve threaded 1000wog locking device
Detailed Product Description
Size:
1/4"~4"
Pressure:
1000WOG(PN63)
Material:
Stainless Steel
Operation:
Lever
High Light:
forged type ball valve , stainless steel ball valve
Floa
- Model Number:
- CX-1PC-01
- Minimum Order Quantity:
- 1PC
- Prices:
- Negotiable
- Packaging Details:
- Carton and wood case
- Delivery Time:
- depends on the qty of order
- Payment Terms:
- L/C, D/A, D/P, T/T, Western Union, MoneyGram
- Supply Ability:
- 10,000pcs per month
- Place of Origin:
- WENZHOU,CHINA
- Certification:
- CE, ISO9001
Detailed Product Description
| Size: | 1/4"~4" | Pressure: | 1000WOG(PN63) |
|---|---|---|---|
| Material: | Stainless Steel | Operation: | Lever |
| High Light: | forged type ball valve , stainless steel ball valve | ||

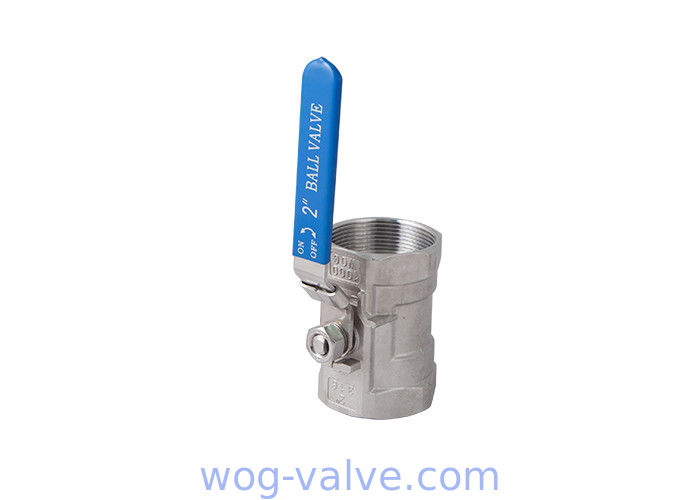

Floating Type Ball Valve 1 Piece / 2 Piece Stainless Steel Ball Valve 1000wog,Reducer Bore,locking device
Specifications:
| Size Range: | 1/4" up to 4" |
| Pressure Range: | 1000PSI(PN63) |
| End Connection: | BW,SW,BSP, BSPT, NPT,ISO228,etc.. |
| Operate: | Lever |
| Material: | Stainless Steel, Carbon Steel |
| Seals: | Soft Seal |
Standards:
| Valves Design: | Manufacturer Standard |
| Face to Face: | Manufacture Standard |
| End Connection: | Butt Weld,Socket Weld,Thread type: ASME B1.20.1 (NPT) DIN2999 & BS21 ISO7/1 & EN10226 |
| Testing&Inspection: | Pressure test |
| Suitable Medium: | Water,Oil,Gas |
