Professional Sanitary 1000 WOG Ball Valve Tri Clamp 3 Way Valve

Detailed Product Description Size: 1/2"~4" Pressure: PN63/1000wog Material: Steel Operation: Lever High Light: thread ball valve , stainless steel ball valve AISI 304 Stainless S
Model Number:
CX-3WC-01
Minimum Order Quantity:
1PC
Prices:
Negotiable
Packaging Details:
Carton and plywood case
Delivery Time:
depends on the qty of order
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
10,000pcs per month
Place of Origin:
WENZHOU,CHINA
Certification:
CE, ISO9001,3A

Detailed Product Description

Size: 1/2"~4" Pressure: PN63/1000wog
Material: Steel Operation: Lever
High Light: thread ball valve ,  stainless steel ball valve

AISI 304 Stainless Steel Sanitary Three way T-port Tri-Clamp Pneumatic Ball Valve

Descriptions:


Sanitary Stainless Steel 304 Three way T-port Tri-Clamp Pneumatic Ball Valve, Used To Make A Fluid Start Or Stop Flowing Through A Section of Pipe, Well Applied To Stainless Steel Pipe System, For Food, Brewery, Dairy, Brewing,Pharmaceutical And Chemical Industries

Sterilization temperature reached 150℃

Valve material:SUS 304 Stainless Steel
Port size: 4" (Φ102)
Sealing material: Polytetrafluoroethene

Connection: Clamp

Surface finish: <0.4μm

Work Pressure: 0-1.6MPa / 232psi

Applicable Temperture: -10℃ ~ +120℃

Applicable Medium:Water, Oil

Operation:Pneumatic

Product certification:ISO

Technical Information:


ASTM 316 stainless steel construction
Meets FDA & USDA 3A requirements
Live loaded, self-adjusting packing and blowout proof stem design
Direct ISO mounting of actuation eliminates need for brackets and couplers
Highly polished I.D., 8-12 Ra
Full port, no internal taper
High quality investment cast body and caps
Standard with Tri-clamp ends, other ends available
Diverts to L-port or T-port flow patterns
Sizes 1”–4”

Standard technical parameters:

Body

Nominal diameter: Φ20-Φ102

Body material: 304,316,316L

Connection type: Clamp, Welding

Pressure class: PN1.6MPa

Structure type: Floating ball core

3 way L-type/ T-type ball valve


Valve components

Seat seal: PTFE: -20°~180℃

PPL: -20°~250℃

Core material: 304,316,316L

Stem material: 304

Design standard:ISO,DIN,IDF,SMS,3A

Applicable medium: Food, medicine, packaging machinery, filling machinery and other health conditions using level.


Pneumatic actuator

Double acting: Air to open, air to close, air supply failure to keep the current position

Single acting air to open type: Air to open, interrupt air to close, air failure to close

Single acting air to close: Air to close, interrupt air to open, air failure to open

Optional accessory: Reversing solenoid valve, limit switch box, air filter reducing valve, positioner, handle manual, lock up valve

Electrical part can be chose explosion-proof type

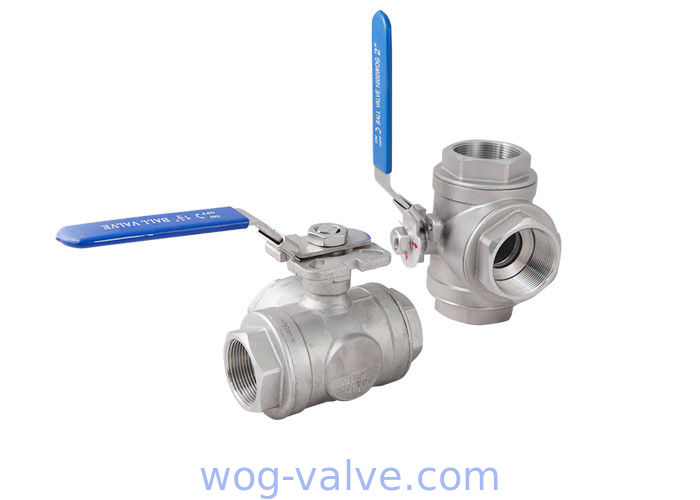

Professional Sanitary 1000 WOG Ball Valve Tri Clamp 3 Way Valve 0Professional Sanitary 1000 WOG Ball Valve Tri Clamp 3 Way Valve 1

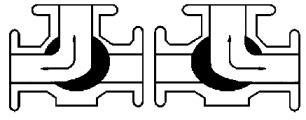

Match with 0-90° rotation pneumatic actuator, can be implement the following flow chart:

L-type:

4" Sanitary 3 Way Ball Valve , T - Port Tri - Clamp Pneumatic Ball Valve

T-type

(Mainly has four kinds of flow directions, please select the sutibale one)

4" Sanitary 3 Way Ball Valve , T - Port Tri - Clamp Pneumatic Ball Valve

ISO 3 way
d D L P A H
Φ19 16 50.5 105 115 158 45
Φ25 21 50.5 120 137 177 48
Φ32 29 50.5 130 137 177 48
Φ38 35 50.5 140 147 196 48
Φ45 42 64 - 165 225 48
Φ51 47 64 164 165 225 58
Φ63 59 77.5 195 165 225 58
Φ76 72 91 218 182 273 65
Φ89 80 106 230 199 304 65
Φ102 97 119 260 199 304 74
