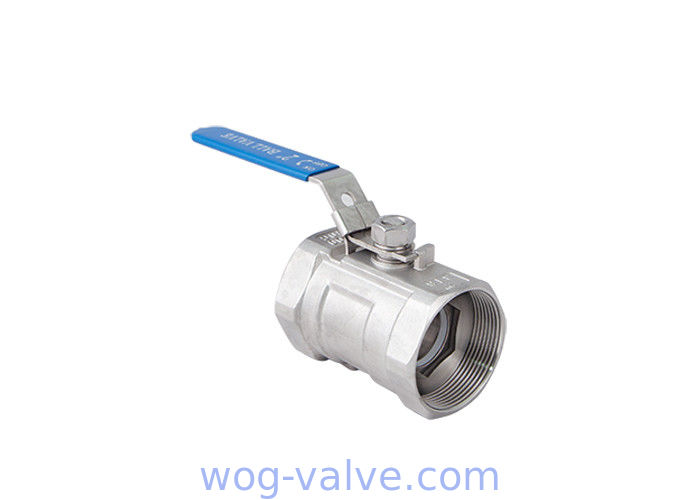

Single Piece WOG Ball Valve Threaded With Locking Device Low Pressure

Detailed Product Description High Light: forged type ball valve , thread ball valve 1-PC STAINLESS STEEL304 or 316 BAL VALVE THREADED WITH LOCKING DEVICE 1000WOG What is One Piece Stainless Ste
Model Number:
CX-1PC-03
Minimum Order Quantity:
1PC
Prices:
Negotiable
Packaging Details:
Plywood Case
Delivery Time:
7-30 work days
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
10000PCS/Mouth
Place of Origin:
WENZHOU,CHINA
Certification:
ISO,CE

Detailed Product Description

High Light: forged type ball valve ,  thread ball valve

1-PC STAINLESS STEEL304 or 316 BAL VALVE THREADED WITH LOCKING DEVICE 1000WOG

What is One Piece Stainless Steel Ball Valve?

Piece Ball Valve named according to valve structure.For one piece stainless steel ball valve is one piece construction(One Body with one Hex-Nut).

One Piece Ball Valve always used in small size and low pressure requirements and normally it is in Reduced Port.

CX Fluid Manufactured Stainless Steel Manual Ball Valves Connections with threaded(BSPT,BSPP,NPT etc), Butt-Welded(BW), Socket-Welded(SW)and Flanged(ANSI,DIN,JIS,GB)

One Piece Stainless Steel Ball Valve Dimension

1. Size: 1/4”-4”(DN8-DN100)

2. Max Pressure: 1000PSI

3. End connection: BS21(BSPT & BSPP), ANSI B2.1(NPT), DIN259/2999,ISO 228

4. Investment Casting Body

5. Blow-out proof Stem

6. Operation: Manual (Lever Handle)

7. Suitable medium: WOG( Water,Oil,Gas) and some corrosive liquid.

8. Material: SS304(CF8,SUS304,1.4308),SS316(CF8M,SUS316,1.4408), SS304L,SS316L, A216 WCB etc.

9. OEM is acceptable and manufacture special requirements according to your drawings.

One Piece Stainless Steel Ball Valve Material List

Single Piece WOG Ball Valve Threaded With Locking Device Low Pressure 0

SIZE G D L H W
1/4” 8 5 41 25 72
3/8” 10 7 45 27 72
1/2” 15 9 57 35 100
3/4” 20 12 60 39 100
1” 25 15 72 44 135
1-1/4” 32 20 78 50 135
1-1/2” 40 25 83 54 152
2” 50 32 100 60 152
2-1/2” 65 42 125 62 163
3” 80 52 149 67 190
4” 100 65 227 72 227

Handles widely used in Manual Ball Valves

1) Ball Valve Lever Handle (Without Lock)

Lever Handle.JPG

2) Ball Valve Lock Lever Handle(With Lock)

Lock Lever Handle

3) Ball Valve Butterfly Handle

Butterfly Handle
