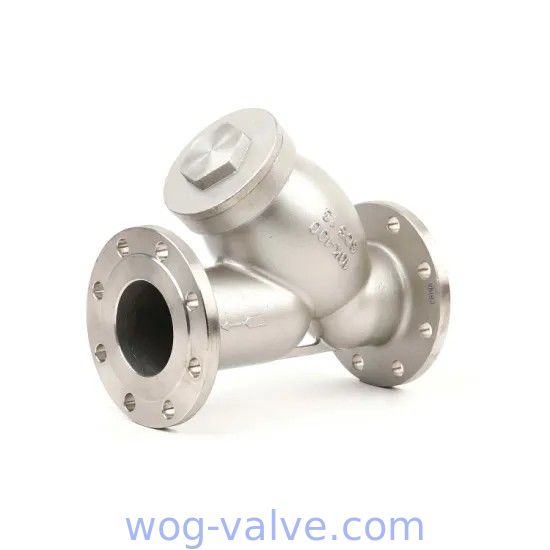

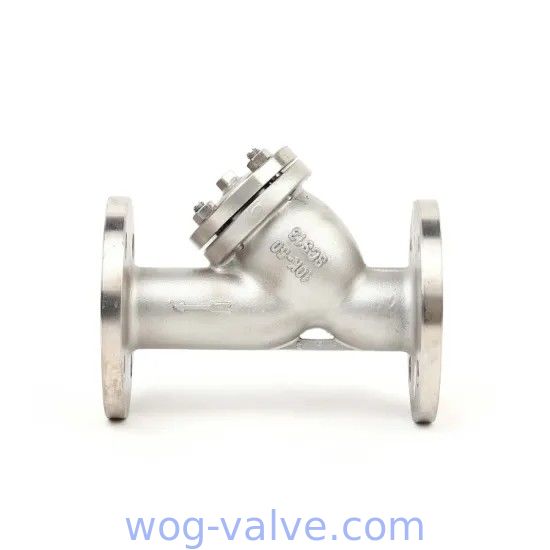

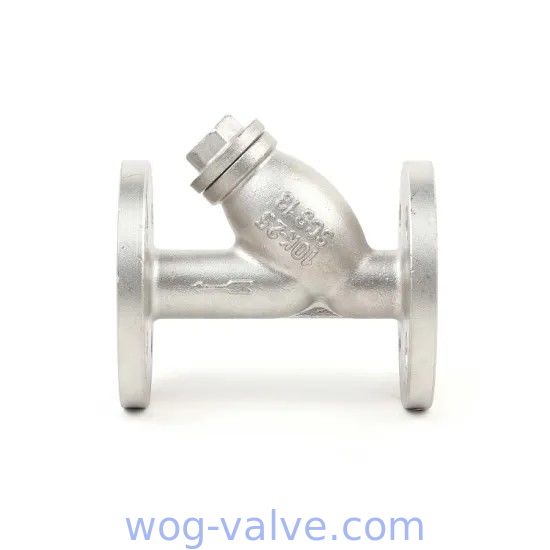

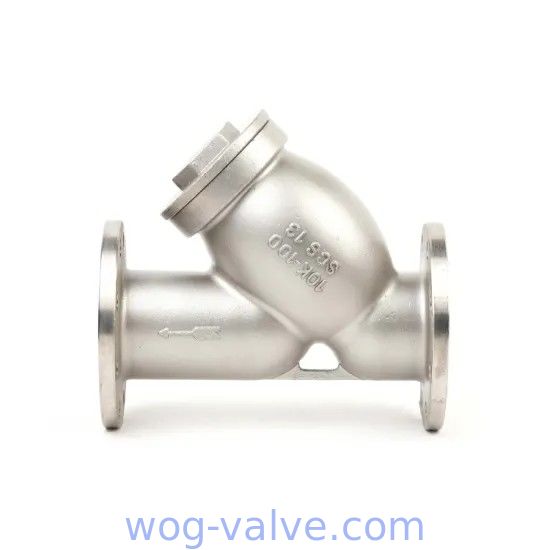

Casting type Stainless steel SCS13 Y strainer,screwed cover,dn25,flanged to jis 10k

Detailed Product Description Body Material: SCS13/SCS14/CF8/CF8M/CF3/CF3M,etc... Screen: 304,316,31803,etc... Temperature: -25℃~250℃ Pressure: 150LB~2500LB,PN16~PN100,JIS10K/20K Medi
Model Number:
CX-CYSR-11
Minimum Order Quantity:
1PC
Prices:
Negotiable
Packaging Details:
Plywood Case
Delivery Time:
30~45 work days
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
10000PCS/Mouth
Place of Origin:
WENZHOU,CHINA
Certification:
API,ISO,CE

Detailed Product Description

Body Material: SCS13/SCS14/CF8/CF8M/CF3/CF3M,etc... Screen: 304,316,31803,etc...
Temperature: -25℃~250℃ Pressure: 150LB~2500LB,PN16~PN100,JIS10K/20K
Medium: Water.Air.gas
High Light: y pattern strainer ,  stainless steel wye strainer

Casting type Stainless steel SCS13 Y strainer,screwed cover,dn25,flanged to jis 10k

Mainly Material Parts

NO. Part Name Material
01 Body ASTM A216WCB A351-CF8 A351-CF8M
02 Screen SS304 SS304 SS316
03 Gasket 304+Graphite 304+Graphite 316+Graphite
04 Bonnet ASTM A216WCB A351-CF8 A351-CF8M
05 Sewage Bolts ASTM A105 SS304 SS316
06 Cover Bolt ASTM A193 B7 A193-B8 A193-B8M
07 Cover Nut ASTM A194 2H A194-8 A194-8M

General Design Features:

Strainer is a device through which is passed for purification,filtering or separation from solid matter.

the strainers usually at the end of a suction pipe of pump,used to prevent solid bodies from mixing in a liquid stream or flowline.

  • Valve Range: Size 2-36Inch (DN50-DN900), Rating Class 150LB-1500LB
  • Valve Applications:Oil Industry, Chemical, Power Station, Refinery, Water Treatment,Architecture,Metallurgy,,etc...
  • Design Standard: ASME B 16.34,etc...
  • Face-to-Face Standard: ASME B16.10,MFR,etc...
  • Connection Standard: Flange per ASME B16.5/ASME B16.47(NPS≥26”), BW per ASME B16.25,SW per ASME B16.11,NPT per ASME B1.20.1,etc...
  • Testing Standard: API 598,etc...
  • Type of Bore: Full Bore,Reduced Bore,etc...
  • Operation: N/A
  • Connection Type: FF, RF, RTJ, BW,etc...
  • Body Type: Y type,Basket type,etc...
  • Other Features: Hard Facing,Drain and Vent Connection,etc...


Main Material Applied for Y type Strainer

Body/Bonnet:A216-WCB/WCC,A352-LCB/LCC,A217-WC6/WC9/C5/C12,A351-CF8/CF8M/CF3/CF3M,4A/5A/C95800,etc...
Screen: SS304,SS316,etc...
Gasket: SS304+Graphite, SS316+Graphite,etc...
Bolts/Nuts:A193 Gr.B7(M)/A194 Gr.2H(M), A320 Gr.L7(M)/ A194 Gr.7(M) or Gr.4(M), A193 Gr.B16/ A194 Gr.7,A193 Gr.B8/ A194 Gr.8, A193 Gr.B8M/A194 Gr.8M

We also spercial produce of Flange Ball Valve, Gate Valve, Globe Valve, Check Valve, Butterfly Valve & Y Strainer.Any inquiry for these valves,pls let us know freely by sales@cncxvalve.com

We will give you best price immediately,and meanwhile,we will supply better service with your other suppliers.Why not have a try.
